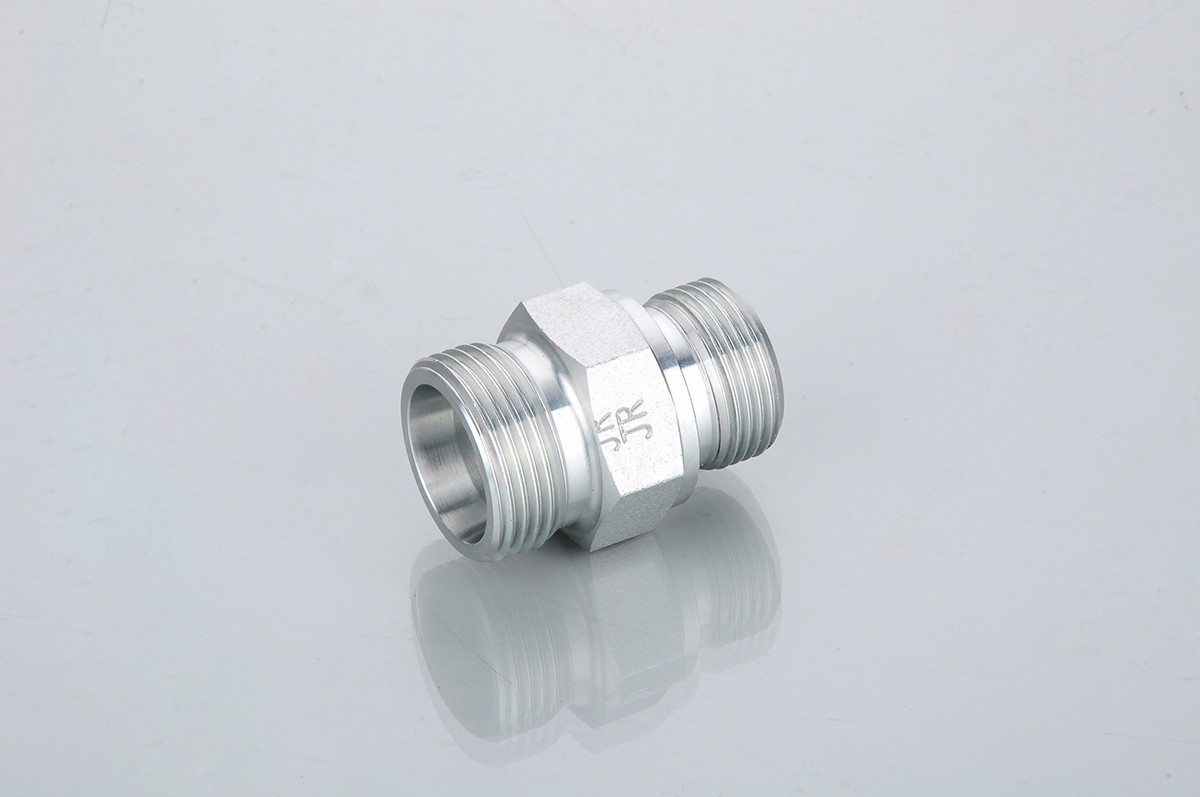

1CM-WD 1CM-WD/RN
1DM-WD 1DM-WD/RN
公制螺纹胶垫密封柱端
METRIC THREAD WITH CAPTIVE SEAL
上一篇: 1CB-WD/ 1DB-WD
下一篇: 1CFL/1DFS
产品中心PRODUCTS CENTER
卡套式硬管接头
LOADING IMAGES

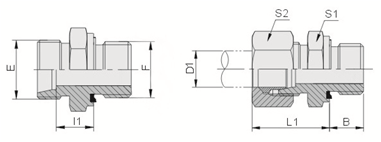

| 代号 | 螺纹 THREAD | 管子外径 | 胶垫 SEAL | 尺寸 DIMENSIONS | 压力等级 | |||||
| PART NO. | E | F | TUBE O.D. | B | l1 | L1 | S1 | S2 | MPA | |
| 1CM-12-10WD | M12X1.5 | M10X1 | 6 | WD-B02 | 8 | 9.5 | 24.5 | 14 | 14 | 31.5轻系列L |
| 1CM-14-12WD | M14X1.5 | M12X1.5 | 8 | WD-M12 | 12 | 10 | 25 | 17 | 17 | |
| 1CM-16-12WD | M16X1.5 | M12X1.5 | 10 | WD-M12 | 12 | 11 | 26 | 17 | 19 | |
| 1CM-16-14WD | M16X1.5 | M14X1.5 | 10 | WD-B04 | 12 | 12 | 27 | 19 | 19 | |
| 1CM-16-18WD | M16X1.5 | M18X1.5 | 10 | WD-M18 | 12 | 12.5 | 27.5 | 24 | 19 | |
| 1CM-18-16WD | M18X1.5 | M16X1.5 | 12 | WD-M16 | 12 | 12 | 27 | 22 | 22 | |
| 1CM-18WD | M18X1.5 | M18X1.5 | 12 | WD-M18 | 12 | 12.5 | 27.5 | 24 | 22 | |
| 1CM-18-22WD | M18X1.5 | M22X1.5 | 12 | WD-M22 | 14 | 14 | 29 | 27 | 22 | |
| 1CM-22-18WD | M22X1.5 | M18X1.5 | 15 | WD-M18 | 12 | 13.5 | 28.5 | 24 | 27 | |
| 1CM-22WD | M22X1.5 | M22X1.5 | 15 | WD-M22 | 14 | 15 | 30 | 27 | 27 | |
| 1CM-26-22WD | M26X1.5 | M22X1.5 | 18 | WD-M22 | 14 | 14.5 | 31 | 27 | 32 | |
| 1CM-30-26WD | M30X2 | M26X1.5 | 22 | WD-B12 | 16 | 16.5 | 33 | 32 | 36 | 16轻系列L |
| 1CM-30-27WD | M30X2 | M27X2 | 22 | WD-B12 | 16 | 16.5 | 33 | 32 | 36 | |
| 1CM-36-33WD | M36X2 | M33X2 | 28 | WD-B16 | 18 | 17.5 | 34 | 41 | 41 | |
| 1CM-45-42WD | M45X2 | M42X2 | 35 | WD-B20 | 20 | 18.5 | 40 | 50 | 50 | |
| 1CM-52-48WD | M52X2 | M48X2 | 42 | WD-B24 | 22 | 19 | 42 | 55 | 60 | |
| 1DM-14-12WD | M14X1.5 | M12X1.5 | 6 | WD-M12 | 12 | 15 | 30 | 17 | 17 | 63重系列S |
| 1DM-16-14WD | M16X1.5 | M14X1.5 | 8 | WD-B04 | 12 | 15 | 30 | 19 | 19 | |
| 1DM-18-16WD | M18X1.5 | M16X1.5 | 10 | WD-M16 | 12 | 16.5 | 33 | 22 | 22 | |
| 1DM-20-18WD | M20X1.5 | M18X1.5 | 12 | WD-M18 | 12 | 17 | 33.5 | 24 | 24 | |
| 1DM-22-20WD | M22X1.5 | M20X1.5 | 14 | WD-M20 | 14 | 18.5 | 36 | 27 | 27 | |
| 1DM-24-22WD | M24X1.5 | M22X1.5 | 16 | WD-M22 | 14 | 18.5 | 37 | 27 | 30 | 40重系列S |
| 1DM-30-27WD | M30X2 | M27X2 | 20 | WD-B12 | 16 | 20.5 | 42 | 32 | 36 | |
| 1DM-36-33WD | M36X2 | M33X2 | 25 | WD-B16 | 18 | 23 | 47 | 41 | 46 | |
| 1DM-42WD | M42X2 | M42X2 | 30 | WD-B20 | 20 | 25.5 | 52 | 50 | 50 | |
| 1DM-52-48WD | M52X2 | M48X2 | 38 | WD-B24 | 22 | 26 | 57 | 55 | 60 | 31.5重系列S |
