1CH/1DH 1CH-RN/1DH-RN

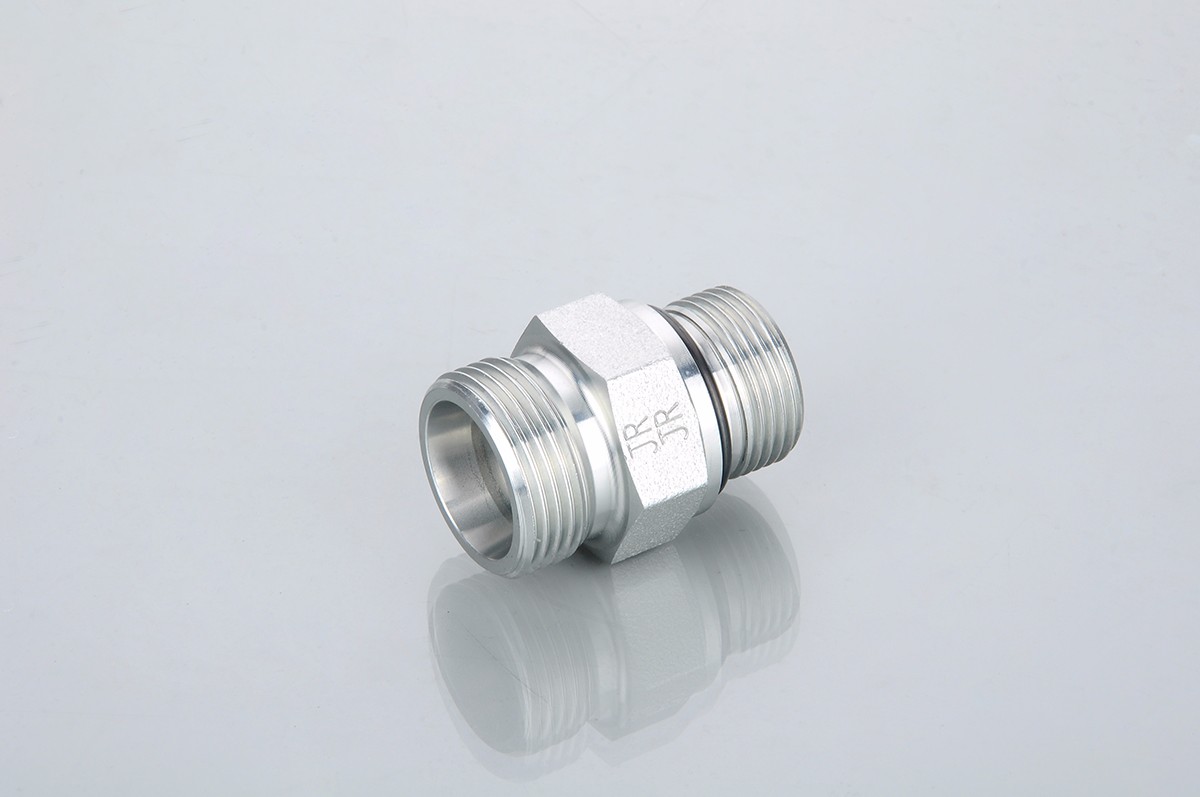

公制螺纹O形圈密封柱端
METRIC THREAD WITH O-RING
上一篇: 1CG/1DG
下一篇: 1CG9-OG/1DG9-OG
产品中心PRODUCTS CENTER
卡套式硬管接头
LOADING IMAGES

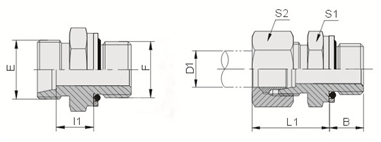

| 代号 | 螺纹 THREAD | 管子外径 D1 | O形圈 | 尺寸 DIMENSIONS | 压力等级 | |||||
| PART NO. | E | F | TUBE O.D. | O-RING | B | l1 | L1 | S1 | S2 | Mpa |
| 1CH-12-10 | M12X1.5 | M10X1 | 6 | O08.1X1.6 | 8 | 9 | 24 | 14 | 14 | 31.5轻系列L |
| 1CH-14 | M14X1.5 | M14X1.5 | 8 | O11.3X2.4 | 12 | 10 | 25 | 19 | 17 | |
| 1CH-14-12 | M14X1.5 | M12X1.5 | 8 | O09.3X2.4 | 12 | 9 | 24 | 17 | 17 | |
| 1CH-14-18 | M14X1.5 | M18X1.5 | 8 | O15.3X2.4 | 12 | 12 | 27 | 24 | 17 | |
| 1CH-16 | M16X1.5 | M16X1.5 | 10 | O13.3X2.4 | 12 | 14 | 29 | 22 | 19 | |
| 1CH-16-14 | M16X1.5 | M14X1.5 | 10 | O11.3X2.4 | 12 | 11 | 26 | 19 | 19 | |
| 1CH-16-18 | M16X1.5 | M18X1.5 | 10 | O15.3X2.4 | 12 | 13 | 28 | 24 | 19 | |
| 1CH-16-22 | M16X1.5 | M22X1.5 | 10 | O19.3X2.4 | 14 | 14 | 29 | 27 | 19 | |
| 1CH-18 | M18X1.5 | M18X1.5 | 12 | O15.3X2.4 | 12 | 12.5 | 27.5 | 24 | 22 | |
| 1CH-18-14 | M18X1.5 | M14X1.5 | 12 | O11.3X2.4 | 12 | 11 | 26 | 19 | 22 | |
| 1CH-18-16 | M18X1.5 | M16X1.5 | 12 | O13.3X2.4 | 12 | 12.5 | 27.5 | 22 | 22 | |
| 1CH-18-20 | M18X1.5 | M20X1.5 | 12 | O17.3X2.4 | 14 | 14 | 29 | 27 | 22 | |
| 1CH-18-22 | M18X1.5 | M22X1.5 | 12 | O19.3X2.4 | 14 | 14 | 29 | 27 | 22 | |
| 1CH-22 | M22X1.5 | M22X1.5 | 15 | O19.3X2.4 | 14 | 15 | 30 | 27 | 27 | |
| 1CH-22-16 | M22X1.5 | M16X1.5 | 15 | O13.3X2.4 | 12 | 13.5 | 28.5 | 22 | 27 | |
| 1CH-22-18 | M22X1.5 | M18X1.5 | 15 | O15.3X2.4 | 12 | 14 | 28 | 24 | 27 | |
| 1CH-22-20 | M22X1.5 | M20X1.5 | 15 | O17.3X2.4 | 14 | 15 | 30 | 27 | 27 | |
| 1CH-26 | M26X1.5 | M26X1.5 | 18 | O23.5X3.0 | 16 | 14.5 | 31 | 32 | 32 | |
| 1CH-26-22 | M26X1.5 | M22X1.5 | 18 | O19.3X2.4 | 14 | 15 | 31.5 | 27 | 32 | |
| 1CH-26-27 | M26X1.5 | M27X2 | 18 | O23.5X3.0 | 16 | 14.5 | 31 | 32 | 32 | |
| 1CH-26-33 | M26X1.5 | M33X2 | 18 | O29.5X3.0 | 18 | 16.5 | 33 | 41 | 32 | |
| 1CH-30-26 | M30X2 | M26X1.5 | 22 | O23.5X3.0 | 16 | 16.5 | 33 | 32 | 36 | 16轻系列L |
| 1CH-30-27 | M30X2 | M27X2 | 22 | O23.5X3.0 | 16 | 18.5 | 35 | 32 | 36 | |
| 1CH-30-33 | M30X2 | M33X2 | 22 | O29.5X3.0 | 18 | 17.5 | 34 | 41 | 36 | |
| 1CH-36-27 | M36X2 | M27X2 | 28 | O23.5X3.0 | 16 | 17.5 | 34 | 36 | 41 | |
| 1CH-36-33 | M36X2 | M33X2 | 28 | O29.5X3.0 | 18 | 17.5 | 34 | 41 | 41 | |
| 1CH-36-42 | M36X2 | M42X2 | 28 | O38.5X3.0 | 20 | 18.5 | 35 | 50 | 41 | |
| 1CH-45-33 | M45X2 | M33X2 | 35 | O29.5X3.0 | 18 | 17.5 | 39 | 46 | 50 | |
| 1CH-45-42 | M45X2 | M42X2 | 35 | O38.5X3.0 | 20 | 17.5 | 38 | 50 | 50 | |
| 1CH-52-42 | M52X2 | M42X2 | 42 | O38.5X3.0 | 20 | 19 | 42 | 55 | 60 | |
| 1CH-52-48 | M52X2 | M48X2 | 42 | O44.5X3.0 | 22 | 19 | 42 | 55 | 60 | |
| 1DH-14-12 | M14X1.5 | M12X1.5 | 6 | O09.3X2.4 | 12 | 11 | 26 | 17 | 17 | 63重系列S |
| 1DH-16-14 | M16X1.5 | M14X1.5 | 8 | O11.3X2.4 | 12 | 14.5 | 29.5 | 19 | 19 | |
| 1DH-18-20 | M18X1.5 | M20X1.5 | 10 | O17.3X2.4 | 14 | 17.5 | 34 | 27 | 22 | |
| 1DH-18-22 | M18X1.5 | M20X1.5 | 10 | O19.3X2.4 | 13 | 17.5 | 34 | 27 | 22 | |
| 1DH-20-18 | M20X1.5 | M18X1.5 | 12 | O15.3X2.4 | 12.5 | 16.5 | 33 | 24 | 24 | |
| 1DH-22 | M22X1.5 | M22X1.5 | 14 | O19.3X2.4 | 14 | 19 | 37 | 27 | 27 | |
| 1DH-22-16 | M22X1.5 | M16X1.5 | 14 | O13.3X2.4 | 12 | 18 | 36 | 24 | 27 | |
| 1DH-22-18 | M22X1.5 | M18X1.5 | 14 | O15.3X2.4 | 12.5 | 18 | 36 | 24 | 27 | |
| 1DH-24-22 | M24X1.5 | M22X1.5 | 16 | O19.3X2.4 | 13 | 18.5 | 37 | 27 | 30 | 40重系列S |
| 1DH-24-27 | M24X1.5 | M27X2 | 16 | O23.5X3.0 | 16 | 20.5 | 39 | 32 | 30 | |
| 1DH-30-27 | M30X2 | M27X2 | 20 | O23.5X3.0 | 16 | 20.5 | 42 | 32 | 36 | |
| 1DH-36-27 | M36X2 | M27X2 | 25 | O23.5X3.0 | 16 | 20 | 44 | 36 | 46 | |
| 1DH-36-33 | M36X2 | M33X2 | 25 | O29.5X3.0 | 18 | 23 | 47 | 52 | 46 | |
| 1DH-42 | M42X2 | M42X2 | 30 | O38.5X3.0 | 20 | 23.5 | 50 | 50 | 50 | |
| 1DH-42-48 | M42X2 | M48X2 | 30 | O44.5X3.0 | 22 | 26.5 | 53 | 55 | 50 | |
