1CH9-OG 1CH9-OG/RN
1DH9-OG 1DH9-OG/RN
90°弯公制外螺纹可调柱端 ISO 6149

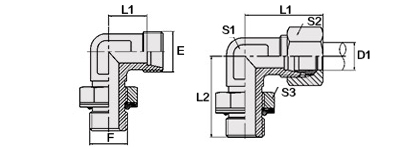

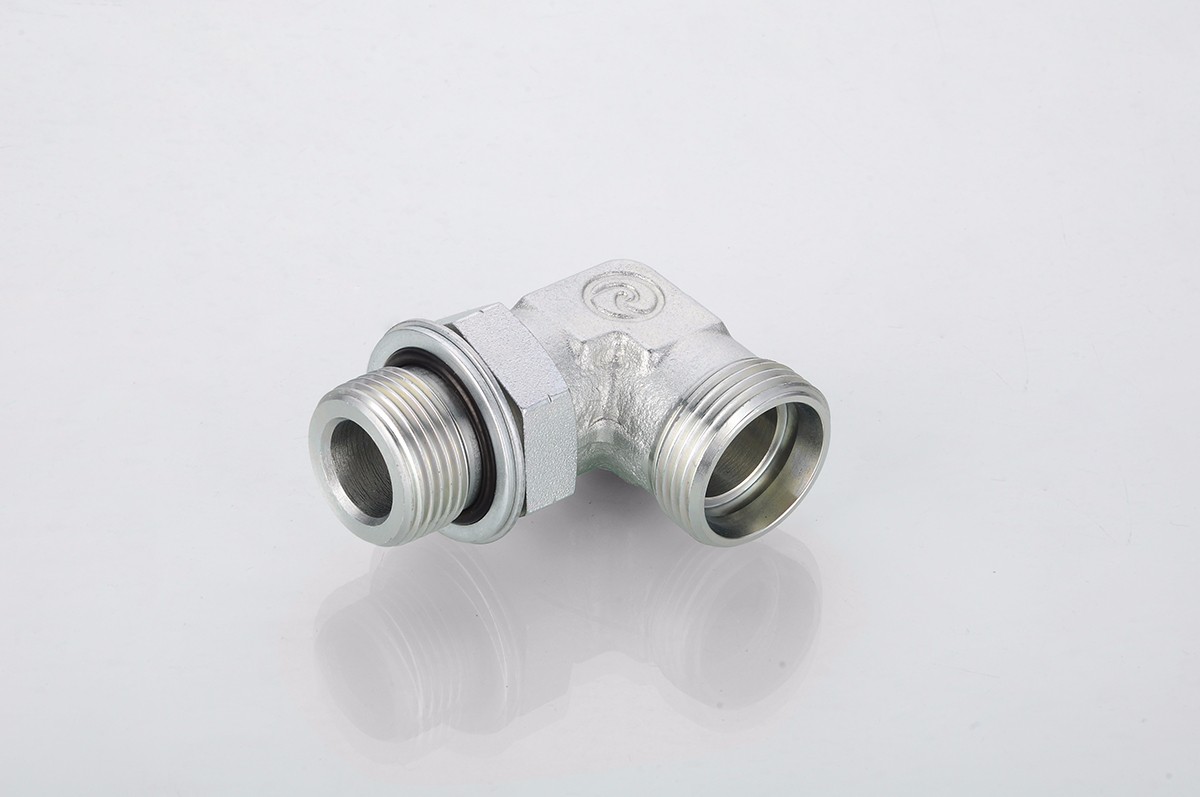

90° ELBOW MALE ADJUSTABLE STUD END ISO 6149
上一篇: 1CG9-OG/1DG9-OG
下一篇: 1CI-B/1DI-B
产品中心PRODUCTS CENTER
卡套式硬管接头
LOADING IMAGES
| 代号 | 螺纹 THREAD | 管子外径 D1 | O形圈 | 尺寸 DIMENSIONS | 压力等级 | ||||||
| PART NO. | E | F | TUBE O.D. | O-RING | l1 | L1 | L2 | S1 | S2 | S3 | Mpa |
| 1CH9-12-10OG | M12X1.5 | M10X1 | 6 | O08.1X1.6 | 13 | 28 | 26.2 | 11 | 14 | 14 | 31.5轻系列L |
| 1CH9-14-12OG | M14X1.5 | M12X1.5 | 8 | O09.3X2.4 | 15 | 30 | 31.5 | 14 | 17 | 17 | |
| 1CH9-16-14OG | M16X1.5 | M14X1.5 | 10 | O11.3X2.4 | 17.5 | 32.5 | 34 | 17 | 19 | 19 | |
| 1CH9-18-16OG | M18X1.5 | M16X1.5 | 12 | O13.3X2.4 | 19 | 34 | 35.8 | 19 | 22 | 22 | |
| 1CH9-22-18OG | M22X1.5 | M18X1.5 | 15 | O15.3X2.4 | 22 | 38 | 38.7 | 22 | 27 | 24 | |
| 1CH9-26-22OG | M26X1.5 | M22X1.5 | 18 | O19.3X2.4 | 25.5 | 42 | 44 | 27 | 32 | 27 | |
| 1CH9-30-27OG | M30X2 | M27X2 | 22 | O23.5X3.0 | 28.5 | 45 | 51 | 27 | 36 | 32 | 16轻系列L |
| 1CH9-36-33OG | M36X2 | M33X2 | 28 | O29.5X3.0 | 31.5 | 48 | 54 | 33 | 41 | 41 | |
| 1DH9-14-12OG | M14X1.5 | M12X1.5 | 6 | O09.3X2.4 | 17 | 32 | 31.5 | 14 | 17 | 17 | 63重系列S |
| 1DH9-16-14OG | M16X1.5 | M14X1.5 | 8 | O11.3X2.4 | 19 | 34 | 33.8 | 17 | 19 | 19 | |
| 1DH9-18-16OG | M18X1.5 | M16X1.5 | 10 | O13.3X2.4 | 19.5 | 36 | 35.8 | 19 | 22 | 22 | |
| 1DH9-20-18OG | M20X1.5 | M18X1.5 | 12 | O15.3X2.4 | 19.5 | 36 | 36.8 | 19 | 24 | 24 | |
| 1DH9-22-20OG | M22X1.5 | M20X1.5 | 14 | O17.3X2.4 | 23.5 | 41.5 | 39.7 | 22 | 27 | 27 | |
| 1DH9-24-22OG | M24X1.5 | M22X1.5 | 16 | O19.3X2.4 | 23 | 41.5 | 40.7 | 22 | 30 | 27 | 40重系列S |
| 1DH9-30-27OG | M30X2 | M27X1.5 | 20 | O23.5X3.0 | 27.5 | 49 | 51 | 27 | 36 | 32 | |
| 1DH9-36-33OG | M36X2 | M33X2 | 25 | O29.5X3.0 | 31 | 55 | 54 | 33 | 46 | 41 | |
| 1DH9-42OG | M42X2 | M42X2 | 30 | O38.5X3.0 | 36.5 | 63 | 60 | 41 | 50 | 50 | |
