1CO9-OG 1CO9-OG/RN
1DO9-OG 1DO9-OG/RN

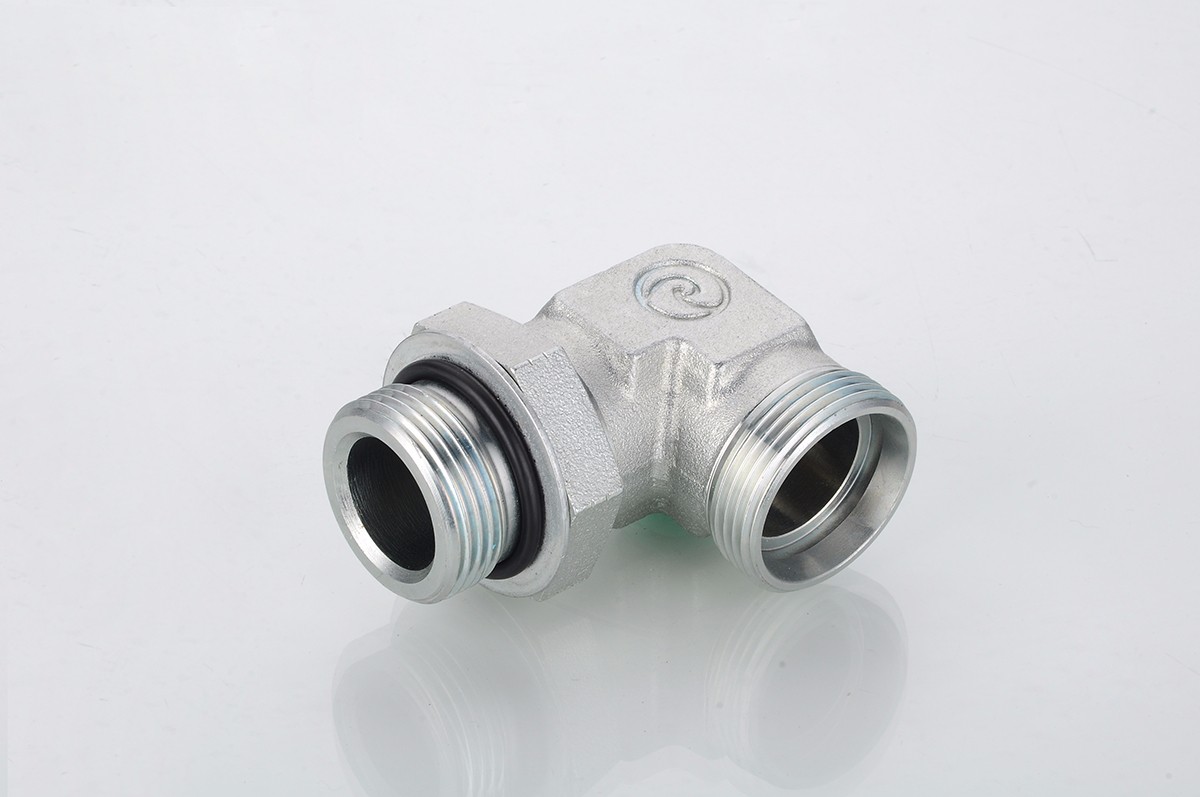

90°弯美制螺纹可调向〇形圈密封柱端
ADJUSTWBLE STUD ENDS WITH O-RING SEALING
产品中心PRODUCTS CENTER
卡套式硬管接头
LOADING IMAGES

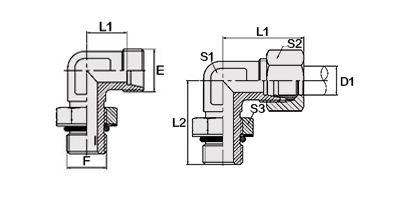

| 代号 | 螺纹 THREAD | 管子外径 | 尺寸 DIMENSIONS | 压力等级 | ||||||
| PART NO. | E | F | D1 | l1 | L1 | L2 | S1 | S2 | S3 | MPA |
| 1CO9-14-04OG | M14X1.5 | 7/16"X20 | 8 | 15 | 30 | 30 | 14 | 17 | 17 | 31.5 |
| 1CO9-16-06OG | M16X1.5 | 9/16"X18 | 10 | 18 | 33 | 33.8 | 17 | 19 | 19 | |
| 1CO9-18-06OG | M18X1.5 | 9/16"X18 | 12 | 19 | 37 | 35 | 19 | 22 | 19 | |
| 1CO9-18-08OG | M18X1.5 | 3/4"X16 | 12 | 19 | 37 | 37.5 | 19 | 22 | 24 | |
| 1CO9-22-08OG | M22X1.5 | 3/4"X16 | 15 | 23 | 38 | 39.7 | 22 | 27 | 24 | |
| 1CO9-22-10OG | M22X1.5 | 7/8"X14 | 15 | 22.5 | 37.5 | 44.5 | 22 | 27 | 27 | |
| 1CO9-26-12OG | M26X1.5 | 1.1/16"X12 | 18 | 25.5 | 42 | 51 | 27 | 32 | 32 | |
| 1CO9-30-12OG | M30X2 | 1.1/16"X12 | 22 | 28.5 | 45 | 51 | 27 | 36 | 32 | 16 |
| 1CO9-36-16OG | M36X2 | 1.5/16"X12 | 28 | 31.5 | 48 | 54 | 33 | 41 | 41 | |
| 1CO9-45-20OG | M45X2 | 1.5/8"X12 | 35 | 35.5 | 57 | 60 | 41 | 50 | 50 | |
| 1CO9-52-24OG | M52X2 | 1.7/8"X12 | 42 | 41.5 | 64.5 | 64.6 | 48 | 60 | 55 | |
| 1DO9-14-04OG | M14X1.5 | 7/16"X20 | 6 | 17 | 32 | 30 | 14 | 17 | 17 | 63 S |
| 1DO9-16-06OG | M16X1.5 | 9/16"X18 | 8 | 19 | 34 | 33.8 | 17 | 19 | 19 | |
| 1DO9-18-06OG | M18X1.5 | 9/16"X18 | 10 | 19.5 | 36 | 35.3 | 19 | 22 | 19 | |
| 1DO9-20-08OG | M20X1.5 | 3/4"X16 | 12 | 19.5 | 36 | 37.5 | 19 | 24 | 24 | |
| 1DO9-22-08OG | M22X1.5 | 3/4"X16 | 14 | 23 | 41 | 40 | 22 | 27 | 24 | 40 |
| 1DO9-24-10OG | M24X1.5 | 7/8"X14 | 16 | 23 | 41.5 | 44.5 | 22 | 30 | 27 | |
| 1DO9-30-12OG | M30X2 | 1.1/16"X12 | 20 | 26.5 | 48 | 51 | 27 | 36 | 32 | |
| 1DO9-36-16OG | M36X2 | 1.5/16"X12 | 25 | 32 | 56 | 46 | 33 | 46 | 41 | |
| 1DO9-42-20OG | M42X2 | 1.5/8"X12 | 30 | 38 | 64.5 | 60 | 41 | 50 | 50 | |
| 1DO9-52-24OG | M52X2 | 1.7/8"X12 | 38 | 40.5 | 71.5 | 64.6 | 48 | 60 | 55 | 31.5重系列S |
