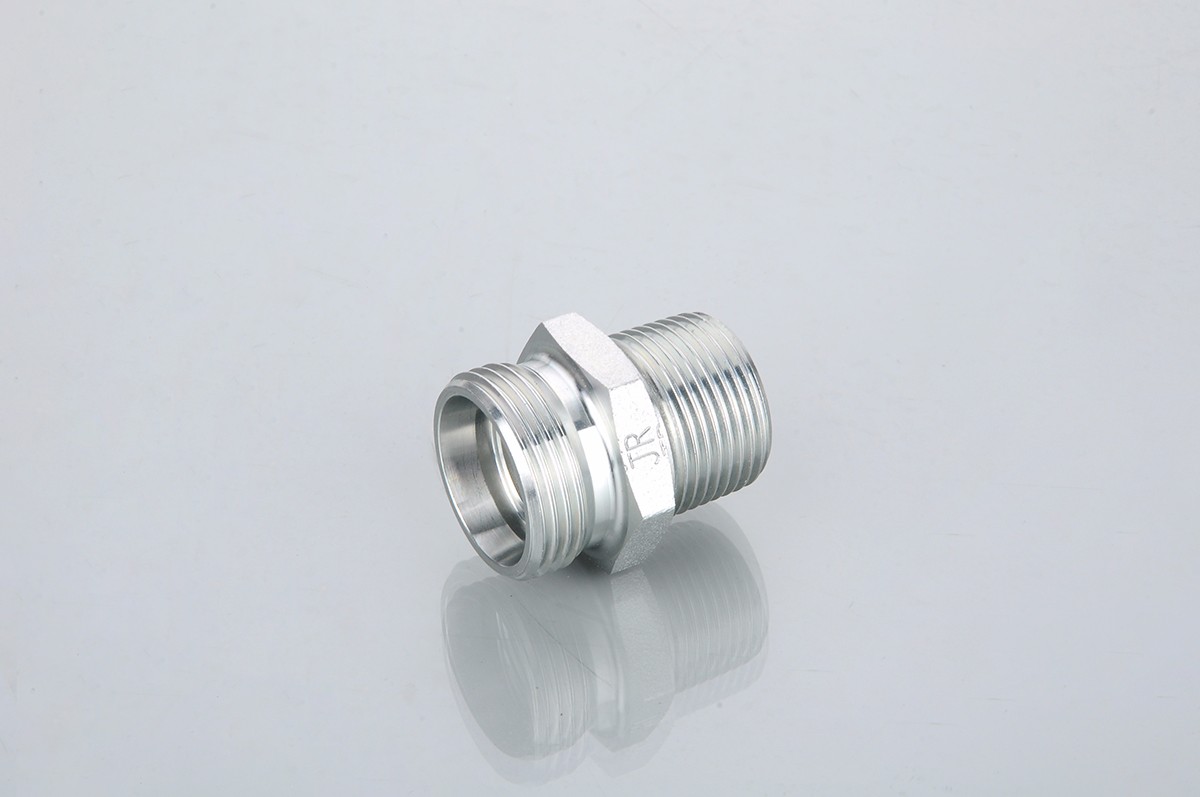

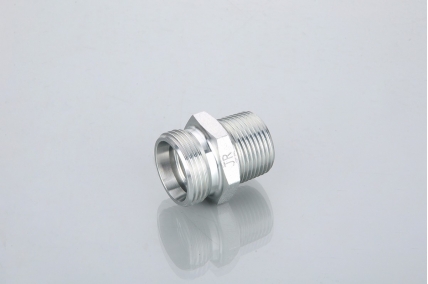

1CT/1DT 1CT-RN/1DT-RN
英锥管外螺纹 BSPT MALE
上一篇: 1CO9-OG/1DO9-OG
下一篇: 1CT9/1DT9
产品中心PRODUCTS CENTER
卡套式硬管接头
| 代号 | 螺纹 THREAD | 管子外径 | 尺寸 DIMENSIONS | 压力等级 | ||||
| PART NO. | E | F | TUBE O.D. | l1 | L1 | S1 | S2 | MPA |
| 1CT-12-02 | M12X1.5 | R1/8"X28 | 6 | 13.5 | 28.5 | 12 | 14 | 25 |
| 1CT-12-04 | M12X1.5 | R1/4"X19 | 6 | 17 | 32 | 14 | 14 | |
| 1CT-14-04 | M14X1.5 | R1/4"X19 | 8 | 17 | 32 | 14 | 17 | |
| 1CT-14-06 | M14X1.5 | R3/8"X19 | 8 | 17.6 | 32.6 | 17 | 17 | |
| 1CT-16-04 | M16X1.5 | R1/4"X19 | 10 | 18 | 33 | 17 | 19 | |
| 1CT-16-06 | M16X1.5 | R3/8"X19 | 10 | 17.6 | 32.6 | 17 | 19 | |
| 1CT-16-08 | M16X1.5 | R1/2"X14 | 10 | 22.8 | 37.8 | 22 | 19 | |
| 1CT-18-04 | M18X1.5 | R1/4"X19 | 12 | 19 | 34 | 19 | 22 | |
| 1CT-18-06 | M18X1.5 | R3/8"X19 | 12 | 18.6 | 33.6 | 19 | 22 | |
| 1CT-18-08 | M18X1.5 | R1/2"X14 | 12 | 22.8. | 37.8 | 22 | 22 | |
| 1CT-22-08 | M22X1.5 | R1/2"X14 | 15 | 22.8 | 37.8 | 22 | 27 | |
| 1CT-26-08 | M26X1.5 | R1/2"X14 | 18 | 22.3 | 37.8 | 27 | 32 | |
| 1CT-26-12 | M26X1.5 | R3/4"X14 | 18 | 23 | 39.5 | 27 | 32 | |
| 1CT-30-12 | M30X2 | R3/4"X14 | 22 | 26 | 42.5 | 30 | 36 | 16 |
| 1CT-36-16 | M36X2 | R1"X11 | 28 | 30.1 | 46.6 | 36 | 41 | |
| 1CT-36-20 | M36X2 | R1.1/4"X11 | 28 | 31.8 | 48.3 | 46 | 41 | |
| 1CT-45-16 | M45X2 | R1"X11 | 35 | 31.1 | 52.6 | 46 | 50 | |
| 1CT-45-20 | M45X2 | R1.1/4"X11 | 35 | 28.8 | 50.3 | 46 | 50 | |
| 1CT-52-20 | M52X2 | R1.1/4"X11 | 42 | 31.3 | 54.3 | 55 | 60 | |
| 1CT-52-24 | M52X2 | R1.1/2"X11 | 42 | 32.8 | 55.8 | 55 | 60 | |
| 1DT-14-04 | M14X1.5 | R1/4"X19 | 6 | 19 | 34 | 14 | 17 | 40 |
| 1DT-16-04 | M16X1.5 | R1/4"X19 | 8 | 21 | 36 | 17 | 19 | |
| 1DT-18-04 | M18X1.5 | R1/4"X19 | 10 | 20.5 | 36.5 | 19 | 22 | |
| 1DT-20-04 | M20X1.5 | R1/4"X19 | 12 | 22.5 | 39 | 22 | 24 | |
| 1DT-20-06 | M20X1.5 | R3/8"X19 | 12 | 22.1 | 38.6 | 22 | 24 | |
| 1DT-22-06 | M22X1.5 | R3/8"X19 | 14 | 23.6 | 41.7 | 22 | 27 | |
| 1DT-22-08 | M22X1.5 | R1/2"X14 | 14 | 25.8 | 43.8 | 22 | 27 | |
| 1DT-24-06 | M24X1.5 | R3/8"X19 | 16 | 23.1 | 41.6 | 24 | 30 | |
| 1DT-24-08 | M24X1.5 | R1/2"X14 | 16 | 25.3 | 43.8 | 24 | 30 | |
| 1DT-30-12 | M30X2 | R3/4"X14 | 20 | 28 | 49.5 | 30 | 36 | 25 |
| 1DT-36-12 | M36X2 | R3/4"X14 | 25 | 30.5 | 54.5 | 36 | 46 | |
| 1DT-36-16 | M36X2 | R1"X11 | 25 | 33.6 | 57.6 | 36 | 46 | |
| 1DT-42-16 | M42X2 | R1"X11 | 30 | 35.1 | 61.6 | 46 | 50 | |
| 1DT-42-20 | M42X2 | R1.1/4"X11 | 30 | 33.8 | 60.3 | 46 | 50 | |
| 1DT-52-20 | M52X2 | R1.1/4"X11 | 38 | 35.3 | 66.3 | 55 | 60 | |
| 1DT-52-24 | M52X2 | R1.1/2"X11 | 38 | 37.3 | 68.3 | 55 | 60 | |
