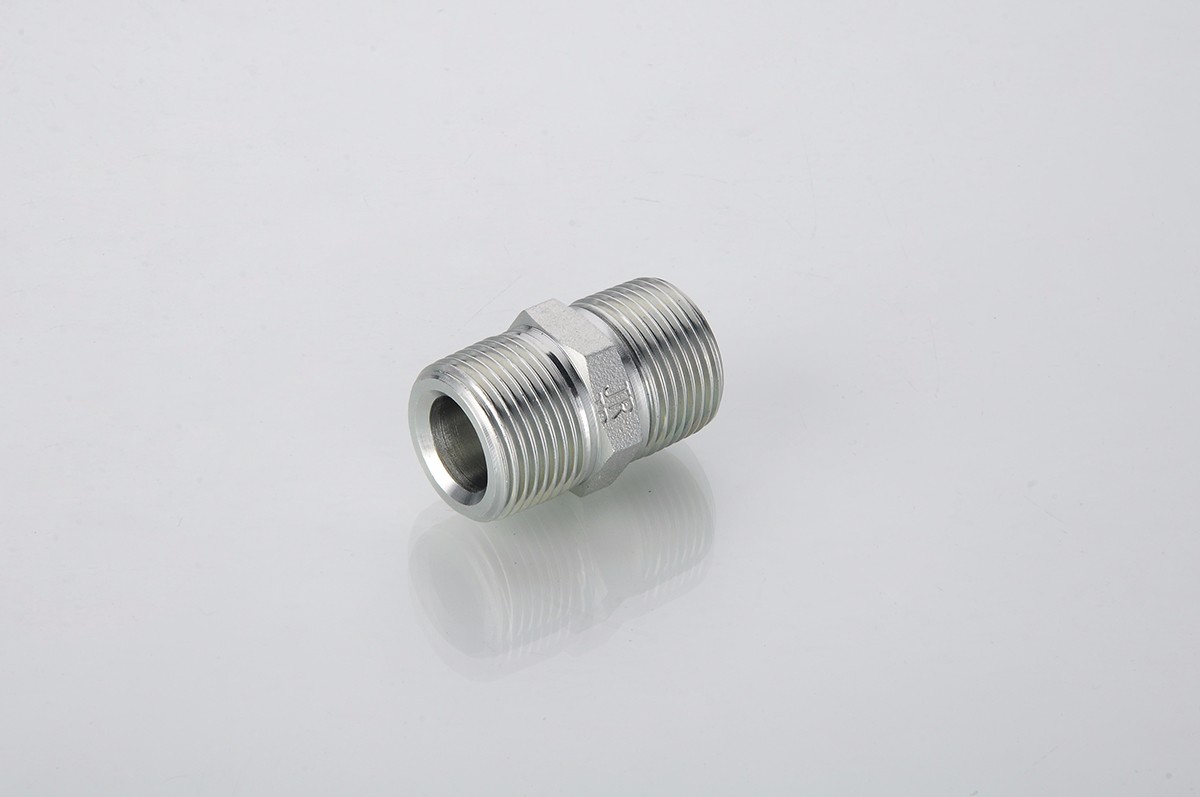

1T
英锥管外螺纹
BSPT MALE
上一篇:暂无
下一篇: 1T9
产品中心PRODUCTS CENTER
过渡接头英制螺纹
| 代号 | 螺 纹 THREAD | 尺 寸 DIMENSIONS | ||||
| PART NO. | E | F | A | B | L | S1 |
| 1T-02 | R1/8"X28 | R1/8"X28 | 10 | 10 | 26 | 12 |
| 1T-02-04 | R1/8"X28 | R1/4"X19 | 10 | 14 | 30 | 14 |
| 1T-04 | R1/4"X19 | R1/4"X19 | 14 | 14 | 34 | 14 |
| 1T-04-06 | R1/4"X19 | R3/8"X19 | 14 | 14 | 34 | 17 |
| 1T-06 | R3/8"X19 | R3/8"X19 | 14 | 14 | 34 | 17 |
| 1T-06-08 | R3/8"X19 | R1/2"X14 | 14 | 18 | 40 | 22 |
| 1T-08 | R1/2"X14 | R1/2"X14 | 18 | 18 | 44 | 22 |
| 1T-08-12 | R1/2"X14 | R3/4"X14 | 18 | 20 | 46 | 27 |
| 1T-12 | R3/4"X14 | R3/4"X14 | 20 | 20 | 48 | 27 |
| 1T-12-16 | R3/4"X14 | R1"X11 | 20 | 24 | 54 | 36 |
| 1T-16 | R1"X11 | R1"X11 | 24 | 24 | 58 | 36 |
| 1T-16-20 | R1"X11 | R1.1/4"X11 | 24 | 25 | 61 | 46 |
| 1T-20 | R1.1/4"X11 | R1.1/4"X11 | 25 | 25 | 62 | 46 |
| 1T-20-24 | R1.1/4"X11 | R1.1/2"X11 | 25 | 26.5 | 66 | 50 |
| 1T-24 | R1.1/2"X11 | R1.1/2"X11 | 26.5 | 26.5 | 67 | 50 |
| 1T-24-32 | R1.1/2"X11 | R2"X11 | 26.5 | 30 | 71.5 | 65 |
| 1T-32 | R2"X11 | R2"X11 | 30 | 30 | 75 | 65 |
