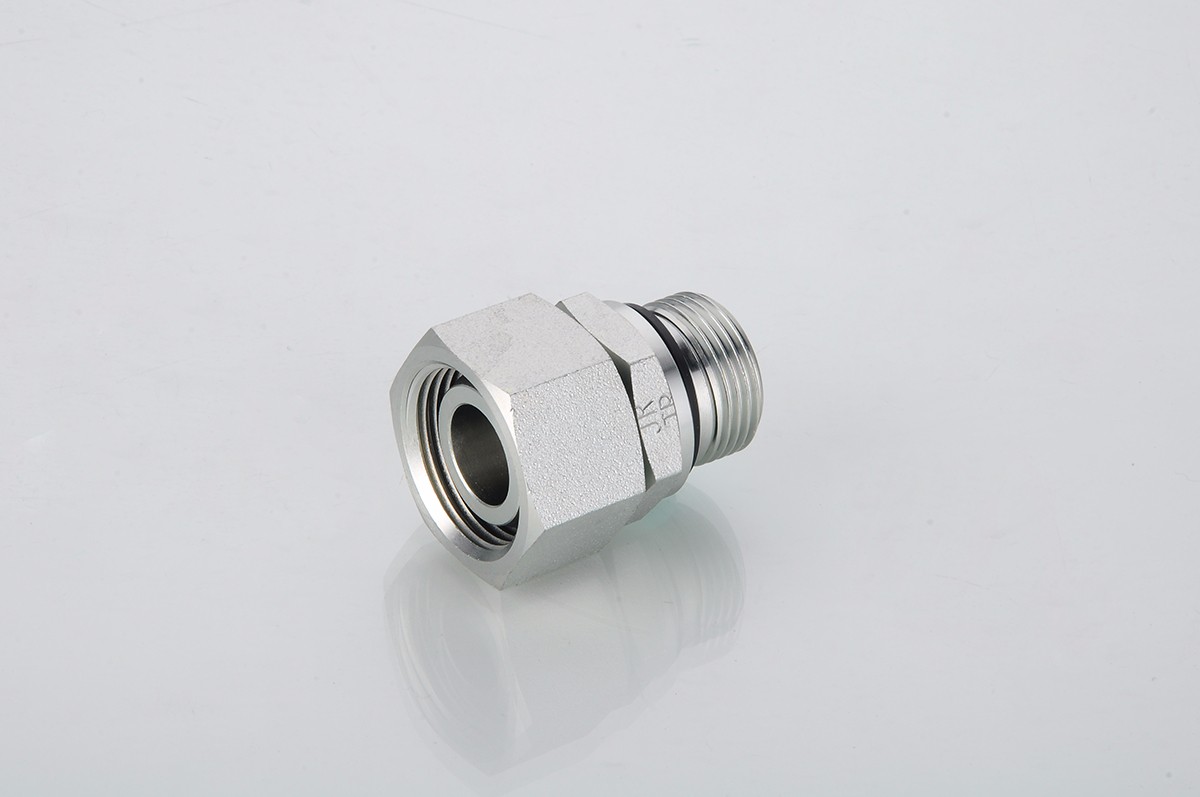

2MC-WD/W /2MD-WD/W
公制螺纹胶垫密封柱端/公制内螺纹24°锥O形圈密封
METRIC THREAD WITH CAPTIVE SEAL/
METRIC FEMALE 24° CONE O-RING SEALING
上一篇: 2BC-WD/2BD-WD
下一篇: 2C-W
产品中心PRODUCTS CENTER
卡套式硬管接头
LOADING IMAGES
| 代号 | 螺纹 THREAD | 管子外径 D1 | 胶垫 | 尺寸 DIMENSIONS | 压力等级 | |||
| PART NO. | E | F | TUBE O.D. | SEAL | A | S1 | S2 | Mpa |
| 2MC-10-12WD/W | M10X1 | M12X1.5 | 6 | WD-B02 | 8 | 14 | 14 | 31.5轻系列L |
| 2MC-12-14WD/W | M12X1.5 | M14X1.5 | 8 | WD-M12 | 12 | 17 | 17 | |
| 2MC-14-16WD/W | M14X1.5 | M16X1.5 | 10 | WD-B04 | 12 | 19 | 19 | |
| 2MC-16-18WD/W | M16X1.5 | M18X1.5 | 12 | WD-M16 | 12 | 22 | 22 | |
| 2MC-18-22WD/W | M18X1.5 | M22X1.5 | 15 | WD-M18 | 12 | 24 | 27 | |
| 2MC-22-26WD/W | M22X1.5 | M26X1.5 | 18 | WD-M22 | 14 | 27 | 32 | |
| 2MC-26-30WD/W | M26X1.5 | M30X2 | 22 | WD-B12 | 16 | 32 | 36 | 16轻系列L |
| 2MC-33-36WD/W | M33X2 | M36X2 | 28 | WD-B16 | 18 | 41 | 41 | |
| 2MC-42-45WD/W | M42X2 | M45X2 | 35 | WD-B20 | 20 | 50 | 50 | |
| 2MC-48-52WD/W | M48X2 | M52X2 | 42 | WD-B24 | 22 | 55 | 60 | |
| 2MD-12-14WD/W | M12X1.5 | M14X1.5 | 6 | WD-M12 | 12 | 17 | 17 | 63重系列S |
| 2MD-14-16WD/W | M14X1.5 | M16X1.5 | 8 | WD-B04 | 12 | 19 | 19 | |
| 2MD-16-18WD/W | M16X1.5 | M18X1.5 | 10 | WD-M16 | 12 | 22 | 22 | |
| 2MD-18-20WD/W | M18X1.5 | M20X1.5 | 12 | WD-M18 | 12 | 24 | 24 | |
| 2MD-20-22WD/W | M20X1.5 | M22X1.5 | 14 | WD-M20 | 14 | 27 | 27 | |
| 2MD-22-24WD/W | M22X1.5 | M24X1.5 | 16 | WD-M22 | 14 | 27 | 30 | 40重系列S |
| 2MD-27-30WD/W | M27X2 | M30X2 | 20 | WD-B12 | 16 | 32 | 36 | |
| 2MD-33-36WD/W | M33X2 | M36X2 | 25 | WD-B16 | 18 | 41 | 46 | |
| 2MD-42WD/W | M42X2 | M42X2 | 30 | WD-B20 | 20 | 50 | 50 | |
| 2MD-48-52WD/W | M48X2 | M52X2 | 38 | WD-B24 | 22 | 55 | 60 | 31.5重系列S |
