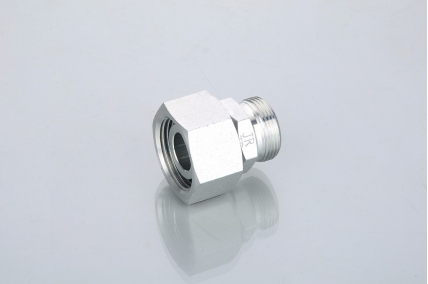

2C-W 2C-W/RN
外螺纹内螺纹转换接头
REDUCER TUBE ADAPTOR WITH SWIVEL NUT
上一篇: 2MC-WD/2MD-WD
下一篇: 2D-W
产品中心PRODUCTS CENTER
卡套式硬管接头
LOADING IMAGES

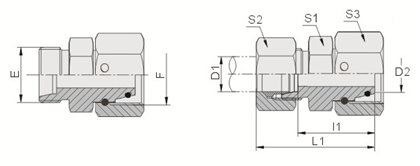

| 代号 | 螺纹 THREAD | 管子外径 TUBE O.D. | 尺寸 DIMENSIONS | 压力等级 | ||||||
| PART NO. | E | F | D1 | D2 | l1 | L1 | S1 | S2 | S3 | Mpa |
| 2C-12-14W | M12X1.5 | M14X1.5 | 6 | 8 | 21.5 | 36.5 | 12 | 14 | 17 | 31.5轻系列L |
| 2C-12-16W | M12X1.5 | M16X1.5 | 6 | 10 | 23.5 | 38.5 | 14 | 14 | 19 | |
| 2C-12-18W | M12X1.5 | M18X1.5 | 6 | 12 | 24 | 39 | 17 | 14 | 22 | |
| 2C-14-16W | M14X1.5 | M16X1.5 | 8 | 10 | 24 | 39 | 15 | 17 | 19 | |
| 2C-14-18W | M14X1.5 | M18X1.5 | 8 | 12 | 25 | 40 | 17 | 17 | 22 | |
| 2C-14-22W | M14X1.5 | M22X1.5 | 8 | 15 | 28 | 42 | 19 | 17 | 27 | |
| 2C-16-18W | M16X1.5 | M18X1.5 | 10 | 12 | 25 | 40 | 17 | 19 | 22 | |
| 2C-16-22W | M16X1.5 | M22X1.5 | 10 | 15 | 28 | 43 | 19 | 19 | 27 | |
| 2C-18-22W | M18X1.5 | M22X1.5 | 12 | 15 | 28 | 43 | 19 | 22 | 27 | |
| 2C-18-26W | M18X1.5 | M26X1.5 | 12 | 18 | 27.5 | 42.5 | 24 | 22 | 32 | |
| 2C-22-26W | M22X1.5 | M26X1.5 | 15 | 18 | 28.5 | 43.5 | 24 | 27 | 32 | |
| 2C-22-30W | M22X1.5 | M30X2 | 15 | 22 | 32 | 47 | 27 | 27 | 36 | |
| 2C-26-30W | M26X1.5 | M30X2 | 18 | 22 | 31.5 | 48 | 27 | 32 | 36 | 16轻系列L |
| 2C-26-36W | M26X1.5 | M36X2 | 18 | 28 | 35.5 | 52 | 32 | 32 | 41 | |
| 2C-30-36W | M30X2 | M36X2 | 22 | 28 | 34.5 | 51 | 32 | 36 | 41 | |
| 2C-30-45W | M30X2 | M45X2 | 22 | 35 | 38.5 | 55 | 41 | 36 | 50 | |
| 2C-36-45W | M36X2 | M45X2 | 28 | 35 | 38.5 | 55 | 41 | 41 | 50 | |
| 2C-36-52W | M36X2 | M52X2 | 28 | 42 | 41 | 57.5 | 50 | 41 | 60 | |
| 2C-45-52W | M45X2 | M52X2 | 35 | 42 | 40 | 61.5 | 50 | 50 | 60 | |
