4BN-WD
英锥管外螺纹胶垫密封内六角堵头

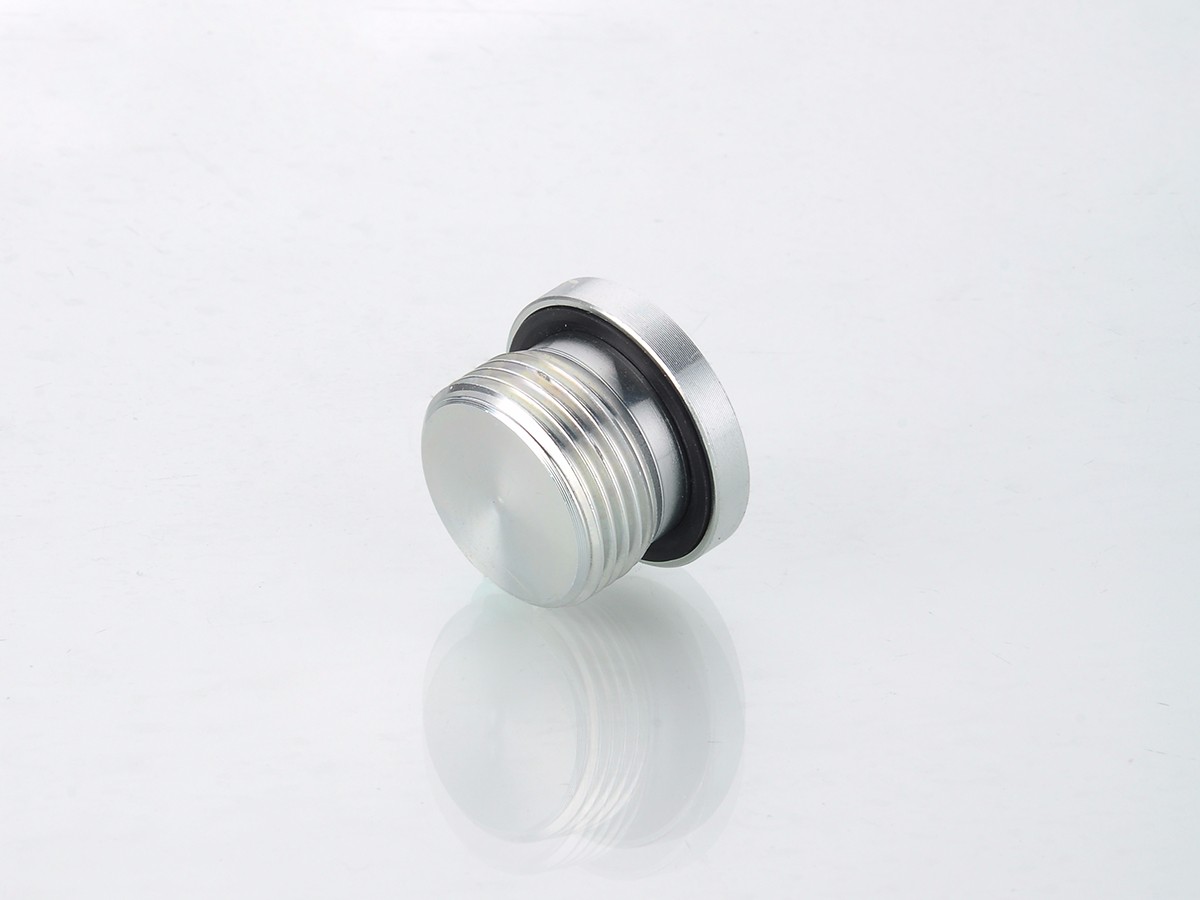

BSPT MALE CAPTIVE SEAL HOLLOW HEX PLUG
产品中心PRODUCTS CENTER
过渡接头英制螺纹
| 代号 | 螺 纹 THREAD | 胶 垫 CAPTIVE | 尺 寸 DIMENSIONS | ||
| PART NO. | E | E | A | L | S1 |
| 4BN-02WD | G1/8"X28 | WD-B02 | 8 | 12 | 5 |
| 4BN-04WD | G1/4"X19 | WD-B04 | 12 | 17 | 6 |
| 4BN-06WD | G3/8"X19 | WD-B06 | 12 | 17 | 8 |
| 4BN-08WD | G1/2"X14 | WD-B08 | 14 | 19 | 10 |
| 4BN-12WD | G3/4"X14 | WD-B12 | 16 | 21 | 12 |
| 4BN-16WD | G1"X11 | WD-B16 | 16 | 22.5 | 17 |
| 4BN-20WD | G1.1/4"X11 | WD-B20 | 16 | 22.5 | 22 |
| 4BN-24WD | G1.1/2"X11 | WD-B24 | 16 | 22.5 | 24 |
