4MN-WD
公制外螺纹胶垫密封内六角堵头

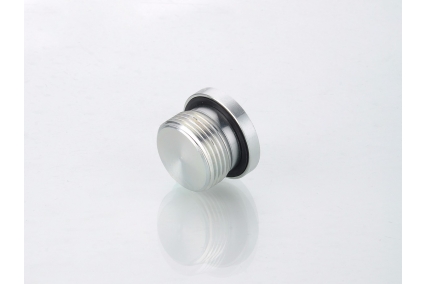

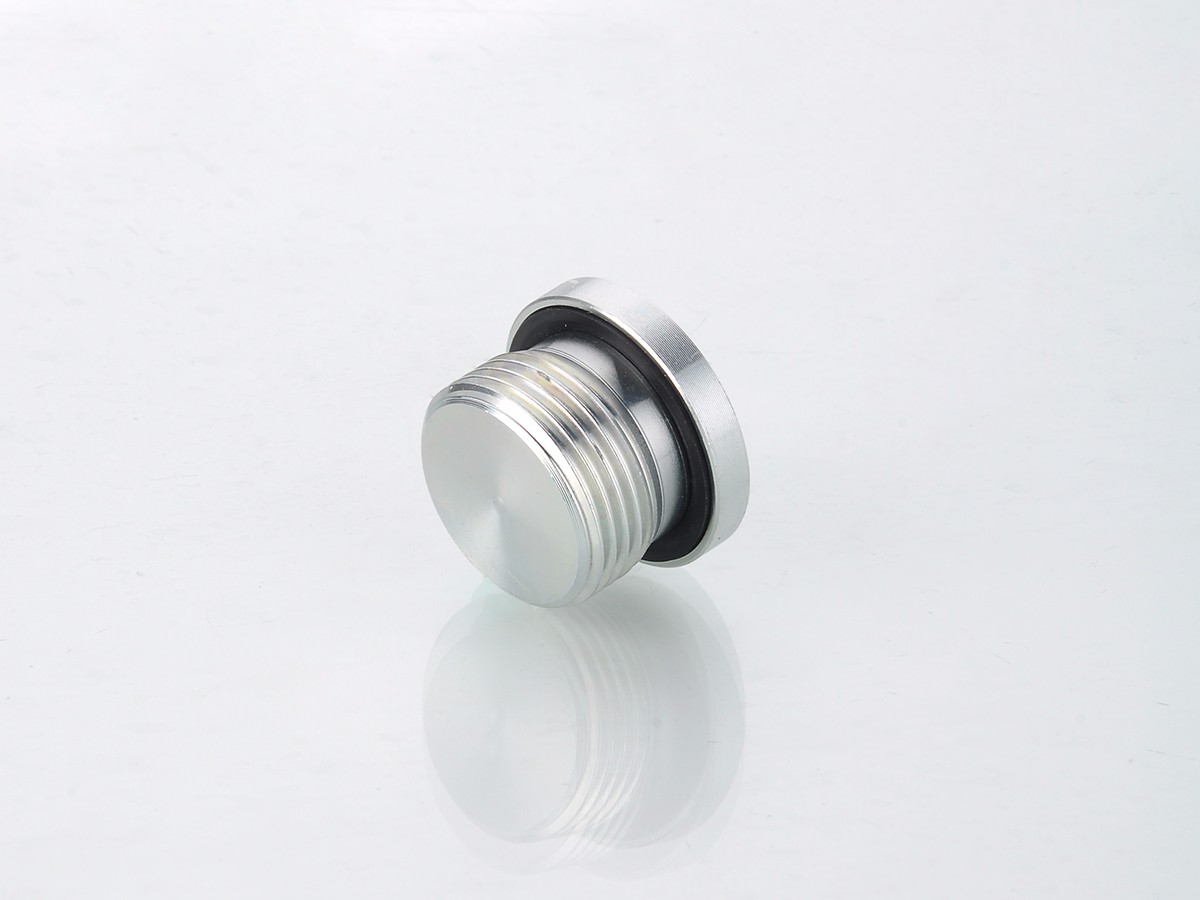

METRIC MALE CAPTIVE SEAL HOLLOW PLUG
产品中心PRODUCTS CENTER
卡套式硬管接头
| 代号 | 螺纹 THREAD | 胶垫 | 尺寸 DIMENSIONS | ||
| PART NO. | E | CAPTIVE | A | L | S1 |
| 4MN-10WD | M10X1 | WD-B02 | 8 | 12 | 5 |
| 4MN-12WD | M12X1.5 | WD-M12 | 12 | 17 | 6 |
| 4MN-14WD | M14X1.5 | WD-B04 | 12 | 17 | 6 |
| 4MN-16WD | M16X1.5 | WD-M16 | 12 | 17 | 8 |
| 4MN-18WD | M18X1.5 | WD-M18 | 12 | 17 | 8 |
| 4MN-20WD | M20X1.5 | WD-M20 | 14 | 19 | 10 |
| 4MN-22WD | M22X1.5 | WD-M22 | 14 | 19 | 10 |
| 4MN-26WD | M26X1.5 | WD-B12 | 16 | 21 | 12 |
| 4MN-27WD | M27X2 | WD-B12 | 16 | 21 | 12 |
| 4MN-33WD | M33X2 | WD-B16 | 16 | 22.5 | 17 |
| 4MN-42WD | M42X2 | WD-B20 | 16 | 22.5 | 22 |
| 4MN-48WD | M48X2 | WD-B24 | 16 | 22.5 | 24 |
