5B-WD

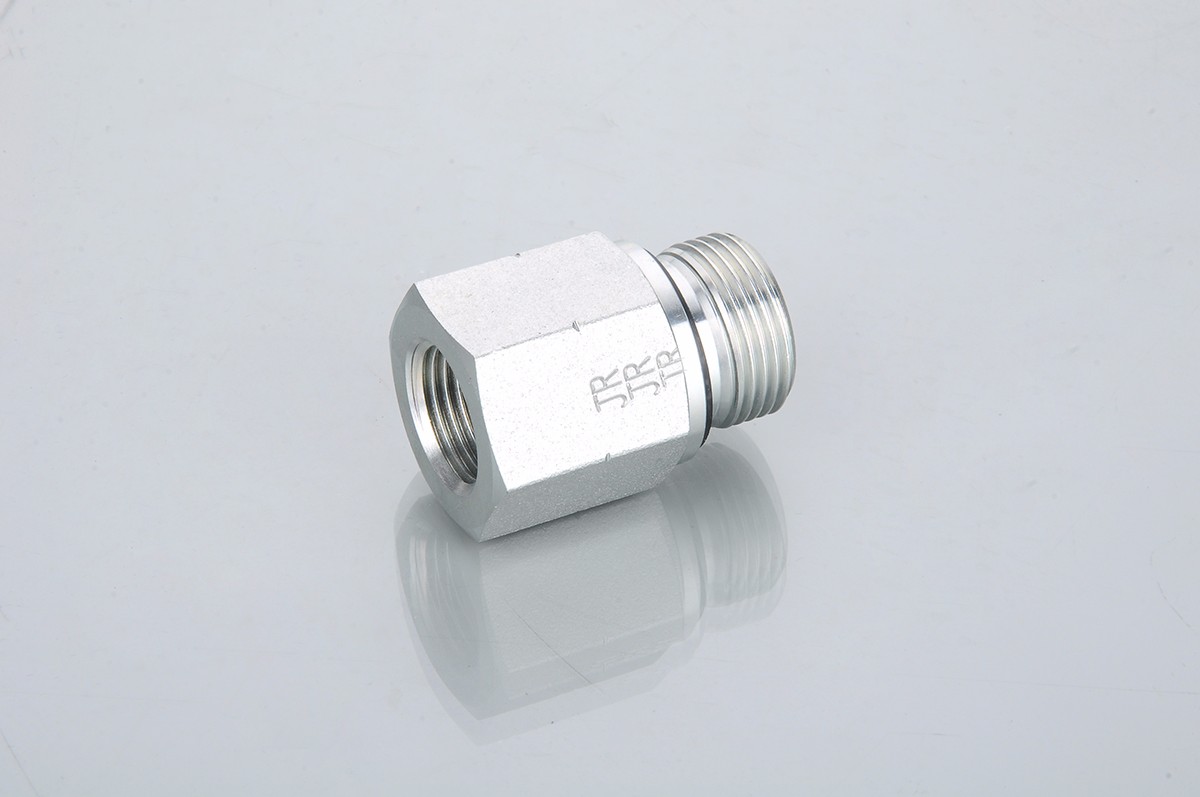

英制外螺纹胶垫密封/英制内螺纹 ISO 1179
BSP MALE CAPTIVE SEAL/BSP FEMALE ISO 1179
产品中心PRODUCTS CENTER
过渡接头英制螺纹
LOADING IMAGES
| 代号 | 螺 纹 THREAD | 胶垫 CAPTIVE | 尺 寸 DIMENSIONS | |||
| PART NO. | E | F | E端 | A | L | S1 |
| 5B-02-04WD | G1/8"X28 | G1/4"X19 | WD-B02 | 8 | 30 | 19 |
| 5B-02-06WD | G1/8"X28 | G3/8"X19 | WD-B02 | 8 | 32.5 | 22 |
| 5B-04-02WD | G1/4"X19 | G1/8"X28 | WD-B04 | 12 | 32 | 19 |
| 5B-04-06WD | G1/4"X19 | G3/8"X19 | WD-B04 | 12 | 37 | 22 |
| 5B-04-08WD | G1/4"X19 | G1/2"X14 | WD-B04 | 12 | 43 | 27 |
| 5B-06-02WD | G3/8"X19 | G1/8"X28 | WD-B06 | 12 | 35.5 | 22 |
| 5B-06-04WD | G3/8"X19 | G1/4"X19 | WD-B06 | 12 | 38 | 22 |
| 5B-06-08WD | G3/8"X19 | G1/2"X14 | WD-B06 | 12 | 44 | 27 |
| 5B-08-04WD | G1/2"X14 | G1/4"X19 | WD-B08 | 14 | 38 | 27 |
| 5B-08-06WD | G1/2"X14 | G3/8"X19 | WD-B08 | 14 | 41 | 27 |
| 5B-08-12WD | G1/2"X14 | G3/4"X14 | WD-B08 | 14 | 46 | 36 |
| 5B-12-08WD | G3/4"X14 | G1/2"X14 | WD-B12 | 16 | 48 | 32 |
| 5B-12-16WD | G3/4"X14 | G1"X11 | WD-B12 | 16 | 53 | 41 |
| 5B-12-20WD | G3/4"X14 | G1.1/4"X11 | WD-B12 | 16 | 54.5 | 50 |
| 5B-16-12WD | G1"X11 | G3/4"X14 | WD-B16 | 18 | 50.5 | 41 |
| 5B-16-20WD | G1"X11 | G1.1/4"X11 | WD-B16 | 18 | 56.5 | 50 |
| 5B-20-16WD | G1.1/4"X11 | G1"X11 | WD-B20 | 20 | 57.5 | 50 |
| 5B-20-24WD | G1.1/4"X11 | G1.1/2"X11 | WD-B20 | 20 | 60.5 | 55 |
| 5B-20-32WD | G1.1/4"X11 | G2"X11 | WD-B20 | 20 | 64 | 70 |
| 5B-24-16WD | G1.1/2"X11 | G1"X11 | WD-B24 | 22 | 60 | 55 |
| 5B-24-20WD | G1.1/2"X11 | G1.1/4"X11 | WD-B24 | 22 | 60 | 55 |
| 5B-24-32WD | G1.1/2"X11 | G2"X11 | WD-B24 | 22 | 66 | 70 |
