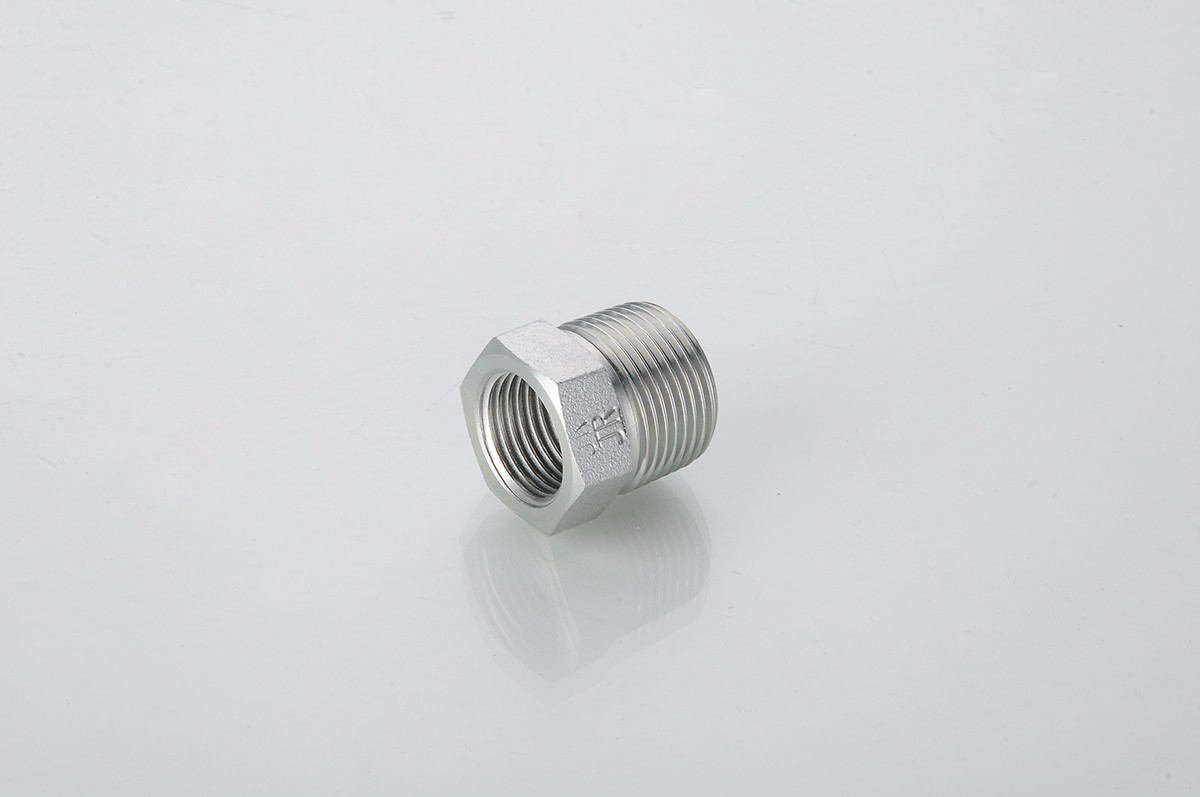

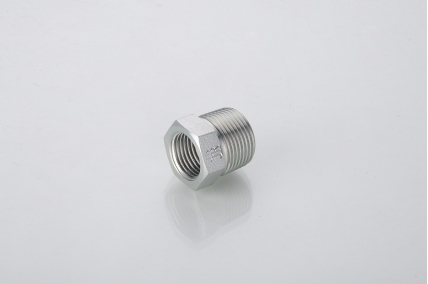

英锥管外螺纹/英锥管内螺纹
BSPT MALE/BSPT FEMALE
产品中心PRODUCTS CENTER
过渡接头英制螺纹
| 代号 | 螺 纹 THREAD | 尺 寸 DIMENSIONS | |||
| PART NO. | E | F | A | L | S1 |
| 5T-02-04 | R1/8"X28 | Rc1/4"X19 | 10 | 30 | 19 |
| 5T-04-02 | R1/4"X19 | Rc1/8"X28 | 14 | 22 | 14 |
| 5T-04 | R1/4"X19 | Rc1/4"X19 | 14 | 34 | 19 |
| 5T-04-06 | R1/4"X19 | Rc3/8"X19 | 14 | 35 | 22 |
| 5T-06-02 | R3/8"X19 | Rc1/8"X19 | 14 | 22 | 17 |
| 5T-06-04 | R3/8"X19 | Rc1/4"X19 | 14 | 22 | 19 |
| 5T-06 | R3/8"X19 | Rc3/8"X19 | 14 | 35 | 22 |
| 5T-06-08 | R3/8"X19 | Rc1/2"X14 | 14 | 36 | 27 |
| 5T-08-04 | R1/2"X14 | Rc1/4"X19 | 18 | 28 | 22 |
| 5T-08-06 | R1/2"X14 | Rc3/8"X19 | 18 | 28 | 22 |
| 5T-08 | R1/2"X14 | Rc1/2"X14 | 18 | 40 | 27 |
| 5T-08-12 | R1/2"X14 | Rc3/4"X14 | 18 | 48 | 36 |
| 5T-12-06 | R3/4"X14 | Rc3/8"X19 | 20 | 30 | 27 |
| 5T-12-08 | R3/4"X14 | Rc1/2"X14 | 20 | 30 | 27 |
| 5T-12 | R3/4"X14 | Rc3/4"X14 | 20 | 48 | 36 |
| 5T-12-16 | R3/4"X14 | Rc1"X11 | 20 | 50 | 41 |
| 5T-16-08 | R1"X11 | Rc1/2"X14 | 24 | 34 | 36 |
| 5T-16-12 | R1"X11 | Rc3/4"X14 | 24 | 34 | 36 |
| 5T-16 | R1"X11 | Rc1"X11 | 24 | 52 | 41 |
| 5T-16-20 | R1"X11 | Rc1.1/4"X11 | 24 | 56 | 50 |
| 5T-20-12 | R1.1/4"X11 | Rc3/4"X14 | 25 | 38 | 46 |
| 5T-20-16 | R1.1/4"X11 | Rc1"X11 | 25 | 38 | 46 |
| 5T-20 | R1.1/4"X11 | Rc1.1/4"X11 | 25 | 60 | 50 |
| 5T-24-16 | R1.1/2"X11 | Rc1"X11 | 26.5 | 42 | 50 |
| 5T-24-20 | R1.1/2"X11 | Rc1.1/4"X11 | 26.5 | 42 | 50 |
| 5T-32-20 | R2"X11 | Rc1.1/4"X11 | 30 | 45 | 65 |
| 5T-32-24 | R2"X11 | Rc1.1/2"X11 | 30 | 45 | 65 |
