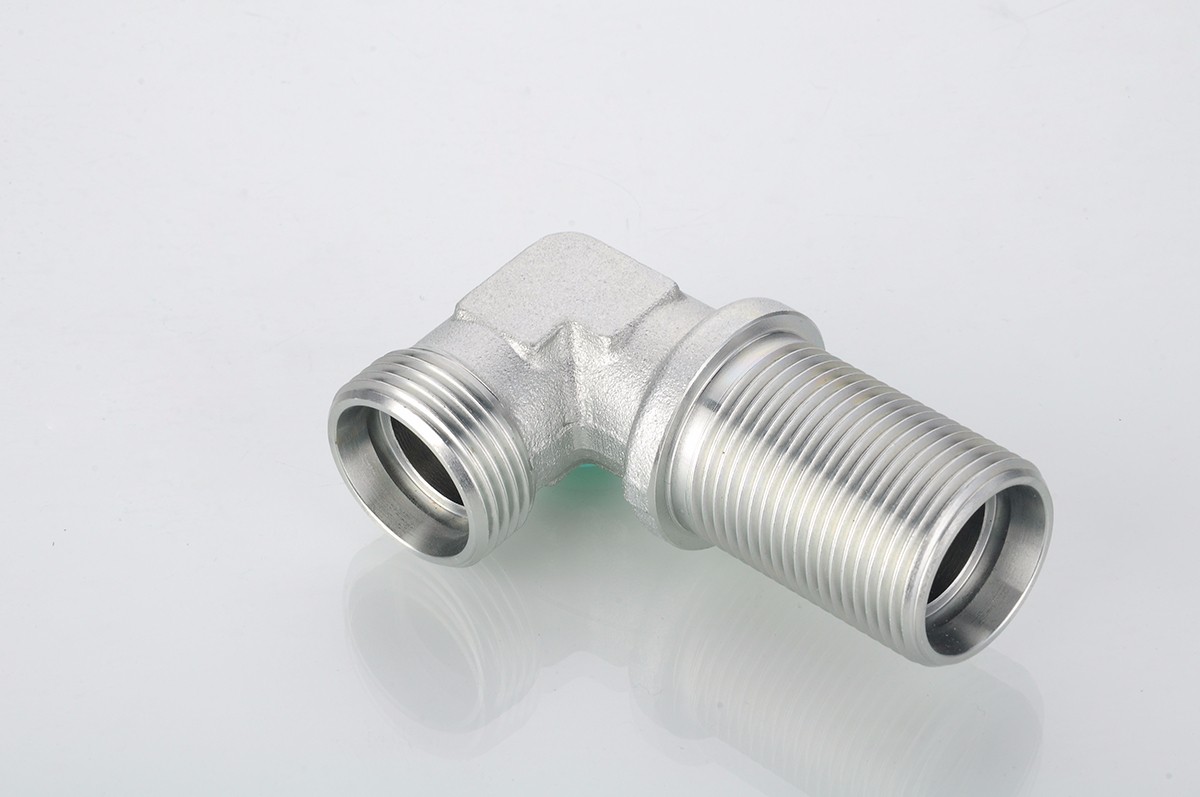

6C9/6D9 6C9-RN/6D9-RN
90° 弯过板接头
90° ELBOW BULKHEAD FITTINGS
产品中心PRODUCTS CENTER
卡套式硬管接头

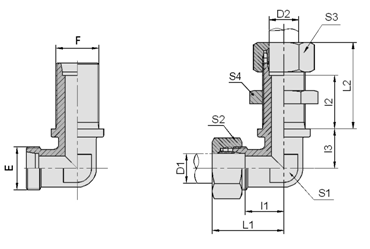

| 代号 | 螺纹 THREAD | 管子外径 | 尺寸 DIMENSIONS | 压力等级 | |||||||||
| PART NO. | E | F | D1 | D2 | l1 | l2 | l3 | L1 | L2 | S1 | S2,S3 | S4 | MPA |
| 6C9-12 | M12X1.5 | M12X1.5 | 6 | 6 | 12 | 27 | 14 | 27 | 42 | 12 | 14 | 17 | 31.5轻系列L |
| 6C9-14 | M14X1.5 | M14X1.5 | 8 | 8 | 14 | 27 | 17 | 29 | 42 | 12 | 17 | 19 | |
| 6C9-16 | M16X1.5 | M16X1.5 | 10 | 10 | 15 | 28 | 18 | 30 | 43 | 14 | 19 | 22 | |
| 6C9-18 | M18X1.5 | M18X1.5 | 12 | 12 | 17 | 29 | 20 | 32 | 44 | 17 | 22 | 24 | |
| 6C9-22 | M22X1.5 | M22X1.5 | 15 | 15 | 21 | 31 | 23 | 36 | 46 | 19 | 27 | 30 | |
| 6C9-26 | M26X1.5 | M26X1.5 | 18 | 18 | 23.5 | 32.5 | 24 | 40 | 49 | 24 | 32 | 36 | |
| 6C9-30 | M30X2 | M30X2 | 22 | 22 | 27.5 | 34.5 | 30 | 44 | 51 | 27 | 36 | 41 | 16轻系列L |
| 6C9-36 | M36X2 | M36X2 | 28 | 28 | 30.5 | 35.5 | 34 | 47 | 52 | 36 | 41 | 46 | |
| 6C9-45 | M45X2 | M45X2 | 35 | 35 | 34.5 | 36.5 | 39 | 56 | 58 | 41 | 50 | 55 | |
| 6C9-52 | M52X2 | M52X2 | 42 | 42 | 40 | 36 | 43 | 63 | 59 | 50 | 60 | 65 | |
| 6D9-14 | M14X1.5 | M14X1.5 | 6 | 6 | 16 | 29 | 17 | 37.5 | 44 | 22 | 17 | 19 | 63重系列S |
| 6D9-16 | M16X1.5 | M16X1.5 | 8 | 8 | 17 | 29 | 18 | 37.5 | 44 | 22 | 19 | 22 | |
| 6D9-18 | M18X1.5 | M18X1.5 | 10 | 10 | 17.5 | 29.5 | 20 | 40.5 | 46 | 27 | 22 | 24 | |
| 6D9-20 | M20X1.5 | M20X1.5 | 12 | 12 | 21.5 | 30.5 | 21 | 40.5 | 47 | 27 | 24 | 27 | |
| 6D9-22 | M22X1.5 | M22X1.5 | 14 | 14 | 22 | 32 | 23 | 43.5 | 50 | 27 | 27 | 30 | |
| 6D9-24 | M24X1.5 | M24X1.5 | 16 | 16 | 24.5 | 31.5 | 24 | 49 | 50 | 33 | 30 | 32 | 40重系列S |
| 6D9-30 | M30X2 | M30X2 | 20 | 20 | 26.5 | 33.5 | 30 | 55 | 55 | 41 | 36 | 41 | |
| 6D9-36 | M36X2 | M36X2 | 25 | 25 | 30 | 35 | 34 | 58 | 59 | 41 | 46 | 46 | |
| 6D9-42 | M42X2 | M42X2 | 30 | 30 | 35.5 | 37.5 | 39 | 60 | 64 | 50 | 50 | 50 | |
| 6D9-52 | M52X2 | M52X2 | 38 | 38 | 40.5 | 37 | 43 | 71 | 68 | 60 | 60 | 65 | 31.5重系列S |
