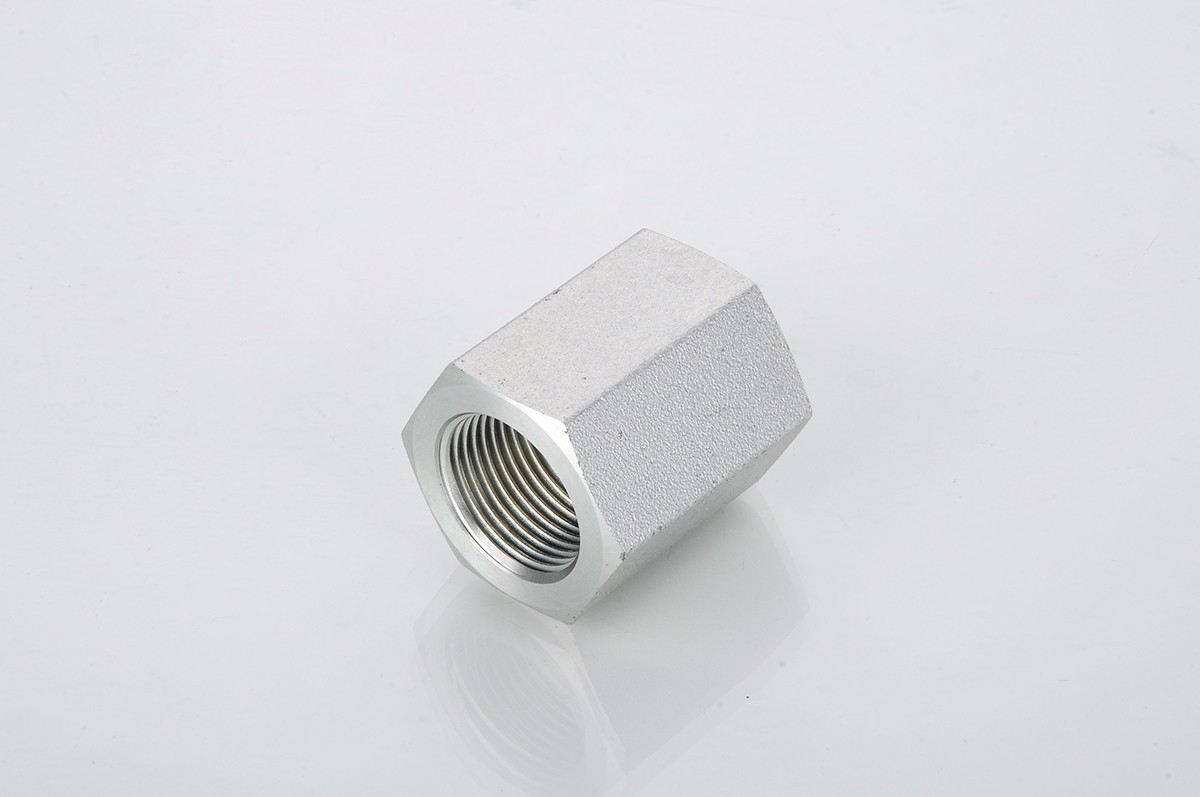

7T
英锥管内螺纹
BSPT FEMALE
产品中心PRODUCTS CENTER
过渡接头英制螺纹
| 代号 | 螺 纹 THREAD | 尺 寸 DIMENSIONS | ||
| PART NO. | E | F | L | S1 |
| 7T-02 | Rc1/8"X28 | Rc1/8"X28 | 20 | 14 |
| 7T-04 | Rc1/4"X19 | Rc1/4"X19 | 30 | 19 |
| 7T-06 | Rc3/8"X19 | Rc3/8"X19 | 30 | 22 |
| 7T-08 | Rc1/2"X14 | Rc1/2"X14 | 40 | 27 |
| 7T-12 | Rc3/4"X14 | Rc3/4"X14 | 42 | 36 |
| 7T-16 | Rc1"X11 | Rc1"X11 | 50 | 41 |
| 7T-20 | Rc1.1/4"X11 | Rc1.1/4"X11 | 55 | 50 |
| 7T-24 | Rc1.1/2"X11 | Rc1.1/2"X11 | 55 | 55 |
| 7T-32 | Rc2"X11 | Rc2"X11 | 65 | 70 |
