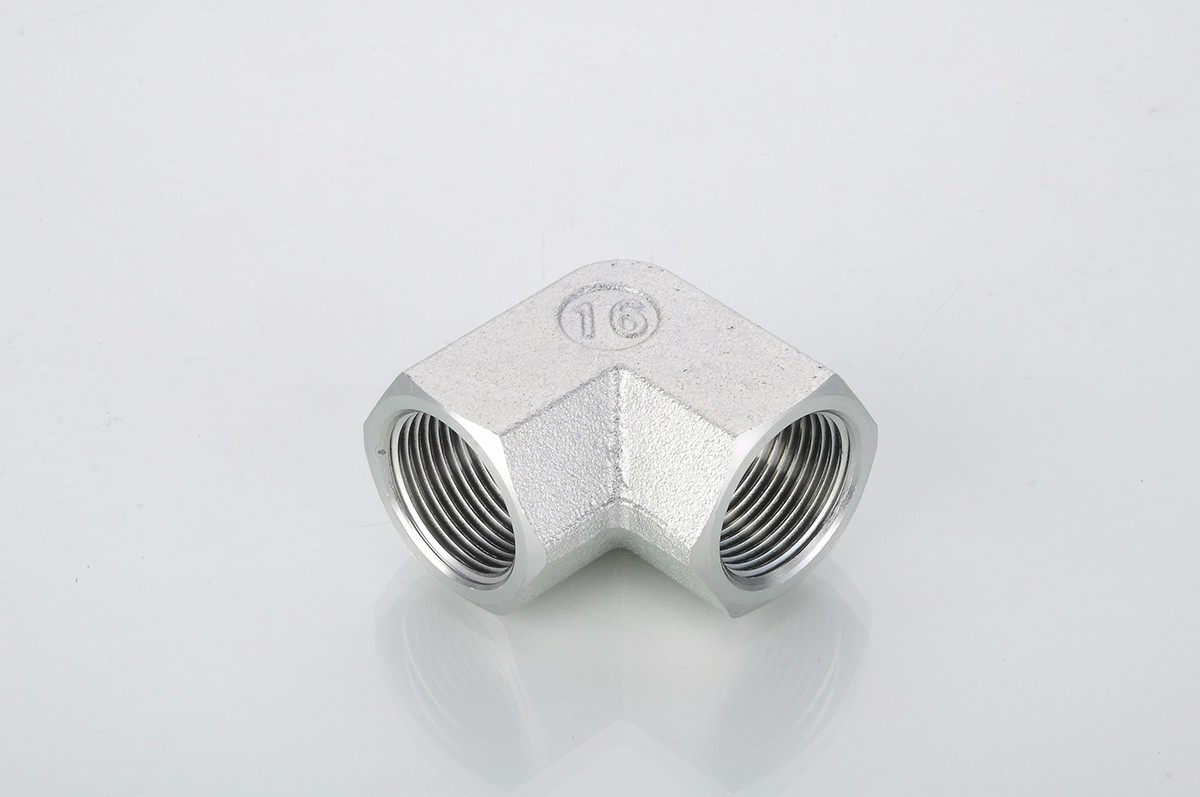

90° 弯英锥管内螺纹
90° ELBOW BSPT FEMALE
产品中心PRODUCTS CENTER
过渡接头英制螺纹
| 代号 | 螺 纹 THREAD | 尺 寸 DIMENSIONS | |||
| PART NO. | E | F | A | B | S1 |
| 7T9-02 | Rc1/8"X28 | Rc1/8"X28 | 16 | 16 | 14 |
| 7T9-04 | Rc1/4"X19 | Rc1/4"X19 | 20.5 | 20.5 | 17 |
| 7T9-06 | Rc3/8"X19 | Rc3/8"X19 | 23.5 | 23.5 | 22 |
| 7T9-08 | Rc1/2"X14 | Rc1/2"X14 | 29 | 29 | 27 |
| 7T9-12 | Rc3/4"X14 | Rc3/4"X14 | 33 | 33 | 33 |
| 7T9-16 | Rc1"X11 | Rc1"X11 | 40 | 40 | 41 |
| 7T9-20 | Rc1.1/4"X11 | Rc1.1/4"X11 | 49 | 49 | 50 |
| 7T9-24 | Rc1.1/2"X11 | Rc1.1/2"X11 | 48.5 | 48.5 | 60 |
| 7T9-32 | Rc2"X11 | Rc2"X11 | 61 | 61 | 68 |
