00200-A
SAE 100R2AT/DIN20022 2SN 软管剥胶套筒

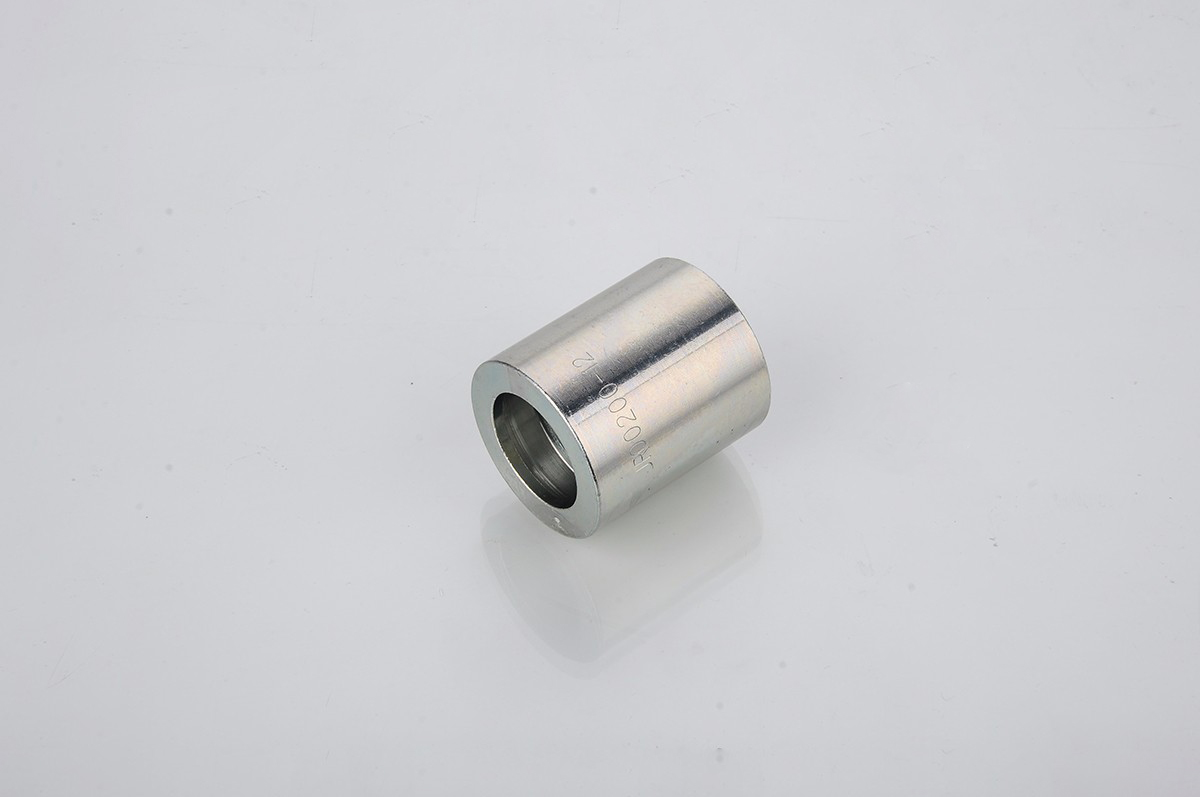

SKIVE FERRULE FOR SAE 100R2AT/DIN20022 2SN HOSE
00200-A
SAE 100R2AT/DIN20022 2SN 软管剥胶套筒
SKIVE FERRULE FOR SAE 100R2AT/DIN20022 2SN HOSE
| 代号 PART NO. | 软管 HOSE BORE | 尺寸 DIMENSIONS | |||||
| 公称内径 DN | 标号 DASH | L | |||||
| 00200-04 | 6 | 04 | 30 | ||||
| 00200-05 | 8 | 05 | 31 | ||||
| 00200-06 | 10 | 06 | 32 | ||||
| 00200-08 | 12 | 08 | 34 | ||||
| 00200-10 | 16 | 10 | 37 | ||||
| 00200-12 | 20 | 12 | 43 | ||||
| 00200-16 | 25 | 16 | 50 | ||||
| 00200-20 | 32 | 20 | 59 | ||||
| 00200-24 | 40 | 24 | 74 | ||||
| 00200-32 | 50 | 32 | 78 | ||||
