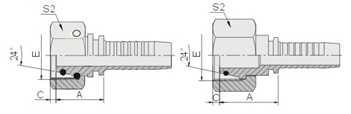

20411-W/20411-T
公制内螺纹24° 锥带O形圈轻系列
METRIC FEMALE 24° CONE O-RING L.T.
ISO 12151-2、DIN 3865
产品中心PRODUCTS CENTER
扣压式软管接头
LOADING IMAGES
| 代号 | 螺纹 E | 软管 HOSE BORE | 管子外径 | O形圈 | 尺寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径 DN | 标号 DASH | TUBE O.D. | O-RING | A | C | S2 |
| 20411-12-04W | M12X1.5 | 6 | 04 | 6 | O04.5X1.5 | 21.5 | 1 | 14 |
| 20411-14-04W | M14X1.5 | 6 | 04 | 8 | O06.5X1.5 | 21.5 | 2 | 17 |
| 20411-14-06W | M14X1.5 | 10 | 06 | 8 | O06.5X1.5 | 21.5 | 2 | 17 |
| 20411-16-04T | M16X1.5 | 6 | 04 | 10 | O08.0X1.5 | 22 | 2 | 19 |
| 20411-16-05W | M16X1.5 | 8 | 05 | 10 | O08.0X1.5 | 22.5 | 2 | 19 |
| 20411-16-06W | M16X1.5 | 10 | 06 | 10 | O08.0X1.5 | 24.5 | 2 | 19 |
| 20411-18-05T | M18X1.5 | 8 | 05 | 12 | O10.0X1.5 | 23 | 2.5 | 22 |
| 20411-18-06W | M18X1.5 | 10 | 06 | 12 | O10.0X1.5 | 23 | 2.5 | 22 |
| 20411-18-08W | M18X1.5 | 12 | 08 | 12 | O10.0X1.5 | 23.5 | 2.5 | 22 |
| 20411-22-06T | M22X1.5 | 10 | 06 | 15 | O12.0X2.0 | 24 | 2.5 | 27 |
| 20411-22-08W | M22X1.5 | 12 | 08 | 15 | O12.0X2.0 | 25 | 2.5 | 27 |
| 20411-26-10W | M26X1.5 | 16 | 10 | 18 | O15.0X2.0 | 26 | 2.5 | 32 |
| 20411-26-12W | M26X1.5 | 20 | 12 | 18 | O15.0X2.0 | 26 | 2.5 | 32 |
| 20411-30-10T | M30X2 | 16 | 10 | 22 | O20.0X2.0 | 30.5 | 4 | 36 |
| 20411-30-12W | M30X2 | 20 | 12 | 22 | O20.0X2.0 | 27.5 | 4 | 36 |
| 20411-36-12T | M36X2 | 20 | 12 | 28 | O26.0X2.0 | 31 | 4 | 41 |
| 20411-36-16W | M36X2 | 25 | 16 | 28 | O26.0X2.0 | 30 | 2.5 | 41 |
| 20411-45-16T | M45X2 | 25 | 16 | 35 | O32.0X2.5 | 34 | 4 | 50 |
| 20411-45-20T | M45X2 | 32 | 20 | 35 | O32.0X2.5 | 35 | 4 | 50 |
| 20411-52-20T | M52X2 | 32 | 20 | 42 | O38.0X2.5 | 38 | 5.5 | 60 |
| 20411-52-24T | M52X2 | 40 | 24 | 42 | O38.0X2.5 | 38 | 5.5 | 60 |
