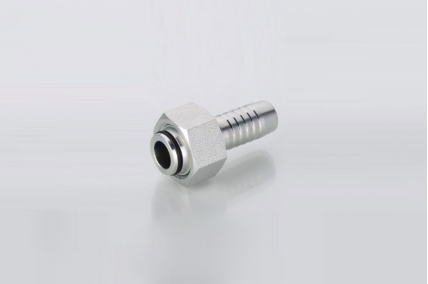

20511-W 20511-T
公制内螺纹24°锥带〇形圈重系列
METRIC FEMALE 24° CONE 〇-RING H.T.DIN3865
产品中心PRODUCTS CENTER
扣压式软管接头
LOADING IMAGES
| 代号 | 螺纹E | 软管 HOSE BORE | 管子外径 | 〇 形圈 | 尺寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标号DASH | TUBE O.D | O RING | A | C | S2 |
| 20511-14-04W | M14X1.5 | 6 | 04 | 6 | O04.5X1.5 | 21 | 1 | 17 |
| 20511-16-04T | M16X1.5 | 6 | 04 | 8 | O06.5X1.5 | 22 | 1.8 | 19 |
| 20511-16-05W | M16X1.5 | 8 | 05 | 8 | O06.5X1.5 | 21 | 1.5 | 19 |
| 20511-18-04T | M18X1.5 | 6 | 04 | 10 | O08.0X1.5 | 23.5 | 2 | 22 |
| 20511-18-06W | M18X1.5 | 10 | 06 | 10 | O08.0X1.5 | 20 | 1.8 | 22 |
| 20511-20-06T | M20X1.5 | 10 | 06 | 12 | O10.0X1.5 | 24 | 2.5 | 24 |
| 20511-20-08W | M20X1.5 | 12 | 08 | 12 | O10.0X1.5 | 24.5 | 2.5 | 24 |
| 20511-22-06T | M22X1.5 | 10 | 06 | 14 | O11.0X2.0 | 26 | 2.5 | 27 |
| 20511-22-08T | M22X1.5 | 12 | 08 | 14 | O11.0X2.0 | 24.5 | 2.5 | 27 |
| 20511-24-06T | M24X1.5 | 10 | 06 | 16 | O13.0X2.0 | 26 | 3 | 30 |
| 20511-24-08T | M24X1.5 | 12 | 08 | 16 | O13.0X2.0 | 26.5 | 3 | 30 |
| 20511-30-10T | M30X2 | 16 | 10 | 20 | O16.3X2.4 | 28.5 | 5 | 36 |
| 20511-30-12T | M30X2 | 20 | 12 | 20 | O16.3X2.4 | 28.5 | 3 | 36 |
| 20511-36-12T | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 30 | 5.2 | 41 |
| 20511-42-12T | M42X2 | 20 | 12 | 30 | O25.3X2.4 | 32.6 | 3.9 | 50 |
| 20511-42-16T | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 34 | 3.9 | 50 |
| 20511-52-20T | M52X2 | 32 | 20 | 38 | O33.3X2.4 | 37 | 6.5 | 60 |
| 20511-52-24T | M52X2 | 40 | 24 | 38 | O33.3X2.4 | 37 | 6.5 | 60 |
