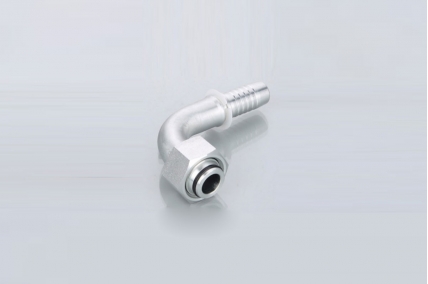

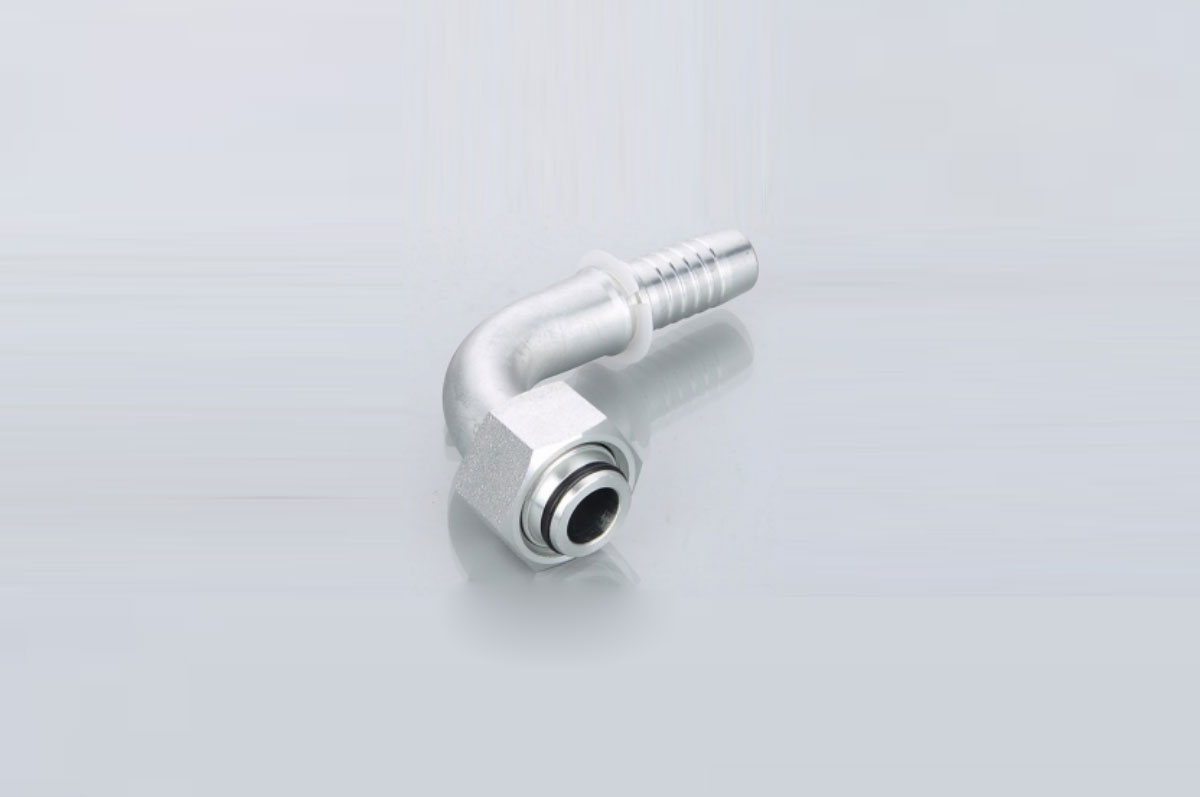

20591-W 20591-T
90°公制内螺纹24°锥带〇形圈重系列
90° METRIC FEMALE 24° CONE 0-RING H.T. ISO 12151-2、DIN3865
产品中心PRODUCTS CENTER
扣压式软管接头
LOADING IMAGES
| 代号 | 螺纹 E | 胶管 HOSE BORE | 管子外径 | O 形圈 | 尺寸 DIMENSIONS | ||||
| PART NO. | THREAD E | 公称内径 DN | 标号 DASH | TUBEO.D. | O RING | A | C | H | S2 |
| 20591-14-04W | M16X1.5 | 6 | 04 | 6 | O04.5X1.5 | 30 | 1 | 38 | 17 |
| 20591-16-04T | M16X1.5 | 6 | 04 | 6 | O06.5X1.5 | 30 | 1.8 | 37.7 | 19 |
| 20591-16-05W | M16X1.5 | 8 | 05 | 8 | O06.5X1.5 | 33 | 1.5 | 41 | 19 |
| 20591-18-04T | M18X1.5 | 6 | 04 | 10 | O08.0X1.5 | 30 | 2 | 38.5 | 22 |
| 20591-18-06W | M18X1.5 | 10 | 06 | 10 | O08.0X1.5 | 35.3 | 1.8 | 44.3 | 22 |
| 20591-20-06T | M20X1.5 | 10 | 06 | 12 | O10.0X1.5 | 35.3 | 2.5 | 44.3 | 24 |
| 20591-20-08W | M20X1.5 | 12 | 08 | 12 | O10.0X1.5 | 41 | 2.5 | 54.5 | 24 |
| 20591-22-06T | M22X1.5 | 10 | 06 | 14 | O11.0X2.0 | 35.3 | 2.5 | 45.8 | 27 |
| 20591-22-08W | M22X1.5 | 12 | 08 | 14 | O11.0X2.0 | 41 | 2.5 | 50.5 | 27 |
| 20591-24-06T | M24X1.5 | 10 | 06 | 16 | O13.0X2.0 | 35.3 | 3 | 45.8 | 30 |
| 20591-24-08T | M24X1.5 | 12 | 08 | 16 | O13.0X2.0 | 41 | 3 | 51 | 30 |
| 20591-24-10W | M24X1.5 | 16 | 08 | 16 | O13.0X2.0 | 54.7 | 2.5 | 55.5 | 30 |
| 20591-30-10T | M30X2 | 16 | 10 | 20 | O16.3X2.4 | 54.7 | 5 | 56.5 | 36 |
| 20591-30-12W | M30X2 | 20 | 12 | 20 | O16.3X2.4 | 65 | 3 | 67.5 | 36 |
| 20591-36-12T | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 64.9 | 5.2 | 64.8 | 41 |
| 20591-42-12T | M42X2 | 20 | 12 | 30 | O25.3X2.4 | 64.9 | 3.9 | 66.5 | 50 |
| 20591-42-16T | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 76.7 | 3.9 | 74.1 | 50 |
| 20591-52-20T | M52X2 | 32 | 20 | 38 | O33.3X2.4 | 91.5 | 6.5 | 89 | 60 |
| 20591-52-24T | M52X2 | 40 | 24 | 38 | O33.3X2.4 | 109.4 | 6.5 | 102.5 | 60 |
