22691

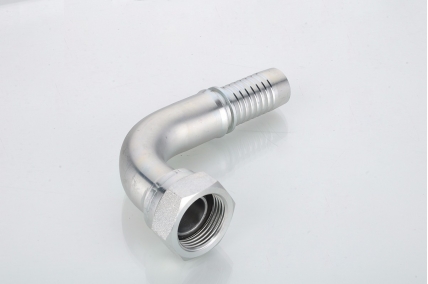

90°弯英管内螺纹60°外锥面
90°ELBOW BSP FEMALE 60°CONE
产品中心PRODUCTS CENTER
扣压式软管接头

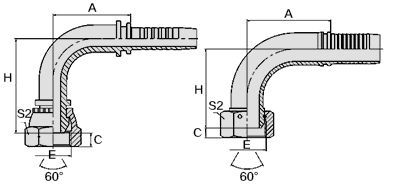

| 代号 | 螺纹 E | 软管 HOSE BORE | 尺寸 DIMENSIONS | ||||
| PART NO. | THREAD E | 公称内径 DN | 标号 DASH | A | C | H | S2 |
| 22691-04-04 | G1/4"X19 | 6 | 04 | 30 | 5.5 | 36.5 | 19 |
| 22691-06-06 | G3/8"X19 | 10 | 06 | 35.3 | 6.3 | 43 | 22 |
| 22691-08-08 | G1/2"X14 | 12 | 08 | 41 | 7.5 | 51 | 27 |
| 22691-12-10 | G3/4"X14 | 16 | 10 | 56 | 10.9 | 56.6 | 32 |
| 22691-12-12 | G3/4"X14 | 20 | 12 | 64.9 | 10.9 | 66 | 32 |
| 22691-16-16 | G1"X11 | 25 | 16 | 76.7 | 11.7 | 73.8 | 41 |
| 22691-20-20W | G1.1/4"X11 | 32 | 20 | 91.5 | 10.5 | 84.3 | 50 |
| 22691-24-24W | G1.1/2"X11 | 40 | 24 | 109.4 | 11 | 105 | 55 |
