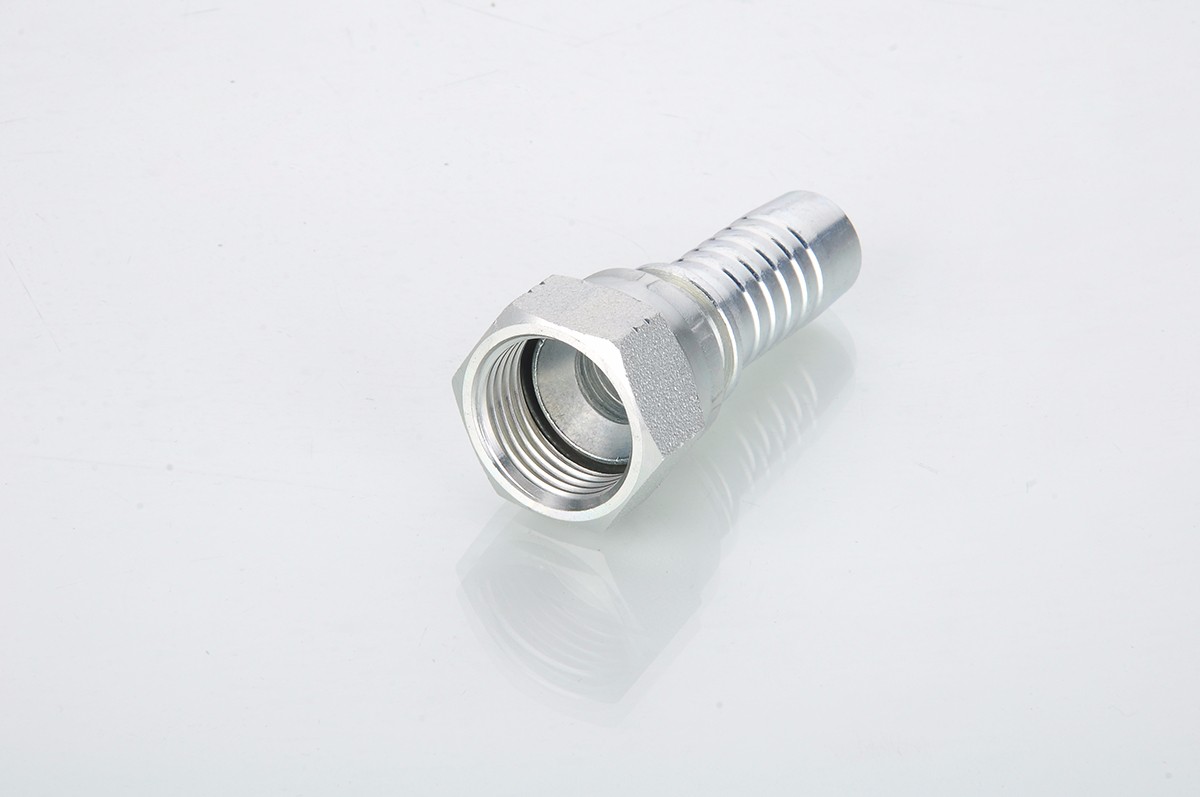

26711/26711-W
美制JIC内螺纹74°内锥面
JIC FEMALE 74° CONE SEAT
SAE J514
产品中心PRODUCTS CENTER
扣压式软管接头

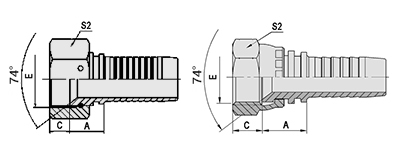

| 代号 | 螺纹 E | 软管 HOSE BORE | 尺寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径 DN | 标号 DASH | A | C | S2 |
| 26711-04-04 | 7/16”X20 | 6 | 04 | 15 | 9 | 15 |
| 26711-05-04 | 1/2“X20 | 6 | 04 | 15.5 | 9.5 | 17 |
| 26711-06-04 | 9/16”X18 | 6 | 04 | 15.5 | 10.5 | 19 |
| 26711-06-06 | 9/16”X18 | 10 | 06 | 15.5 | 10.5 | 19 |
| 26711-08-06 | 3/4“X16 | 10 | 06 | 17.5 | 11 | 24 |
| 26711-08-08 | 3/4”X16 | 12 | 08 | 18.5 | 11 | 24 |
| 26711-10-08 | 7/8“X14 | 12 | 08 | 19 | 13 | 27 |
| 26711-10-10 | 7/8”X14 | 16 | 10 | 19.5 | 13 | 27 |
| 26711-12-12 | 1.1/16"X12 | 20 | 12 | 21.5 | 14 | 32 |
| 26711-16-16 | 1.5/16"X12 | 25 | 16 | 23 | 15.5 | 41 |
| 26711-20-20W | 1.5/8"X12 | 32 | 20 | 25 | 13 | 50 |
| 26711-24-24W | 1.7/8"X12 | 40 | 24 | 31.5 | 16.5 | 55 |
