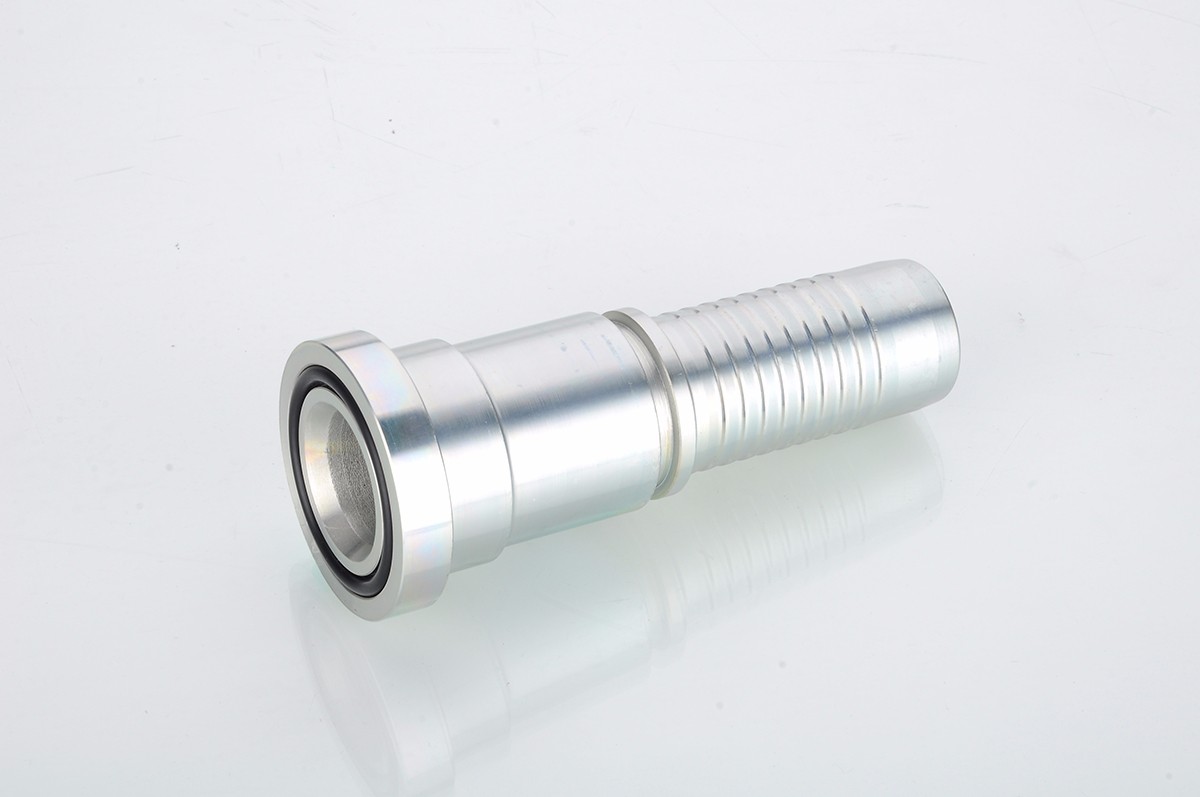

SAE 法兰 6000PSI
SAE FLANGE 6000 PSI
ISO 12151-3、SAE J516
产品中心PRODUCTS CENTER
扣压式软管接头
| 代号 | 法兰型号 | 软管 HOSE BORE | O形圈 | 尺寸 DIMENSIONS | ||||
| PART NO. | FLANGE SIZE | 公称内径 DN | 标号 DASH | O-RING | A | C | D | L |
| 87611-08-08 | 1/2“ | 12 | 08 | O210 | 45 | 31.7 | 24 | 7.75 |
| 87611-12-10 | 3/4“ | 16 | 10 | O214 | 51 | 41.3 | 32 | 8.76 |
| 87611-12-12 | 3/4” | 20 | 12 | O214 | 51 | 41.3 | 32 | 8.76 |
| 87611-16-12 | 1” | 20 | 12 | O219 | 56 | 47.6 | 38 | 9.53 |
| 87611-16-16 | 1“ | 25 | 16 | O219 | 57 | 47.6 | 38 | 9.53 |
| 87611-20-16 | 1.1/4" | 25 | 16 | O222 | 65 | 54 | 44 | 10.29 |
| 87611-20-20 | 1.1/4" | 32 | 20 | O222 | 66 | 54 | 44 | 10.29 |
| 87611-24-20 | 1.1/2" | 32 | 20 | O225 | 75 | 63.5 | 51 | 12.57 |
| 87611-24-24 | 1.1/2" | 40 | 24 | O225 | 75 | 63.5 | 51 | 12.57 |
| 87611-32-24 | 2" | 40 | 24 | O228 | 85 | 79.4 | 67 | 12.57 |
| 87611-32-32 | 2" | 50 | 32 | O228 | 85 | 79.4 | 67 | 12.57 |
