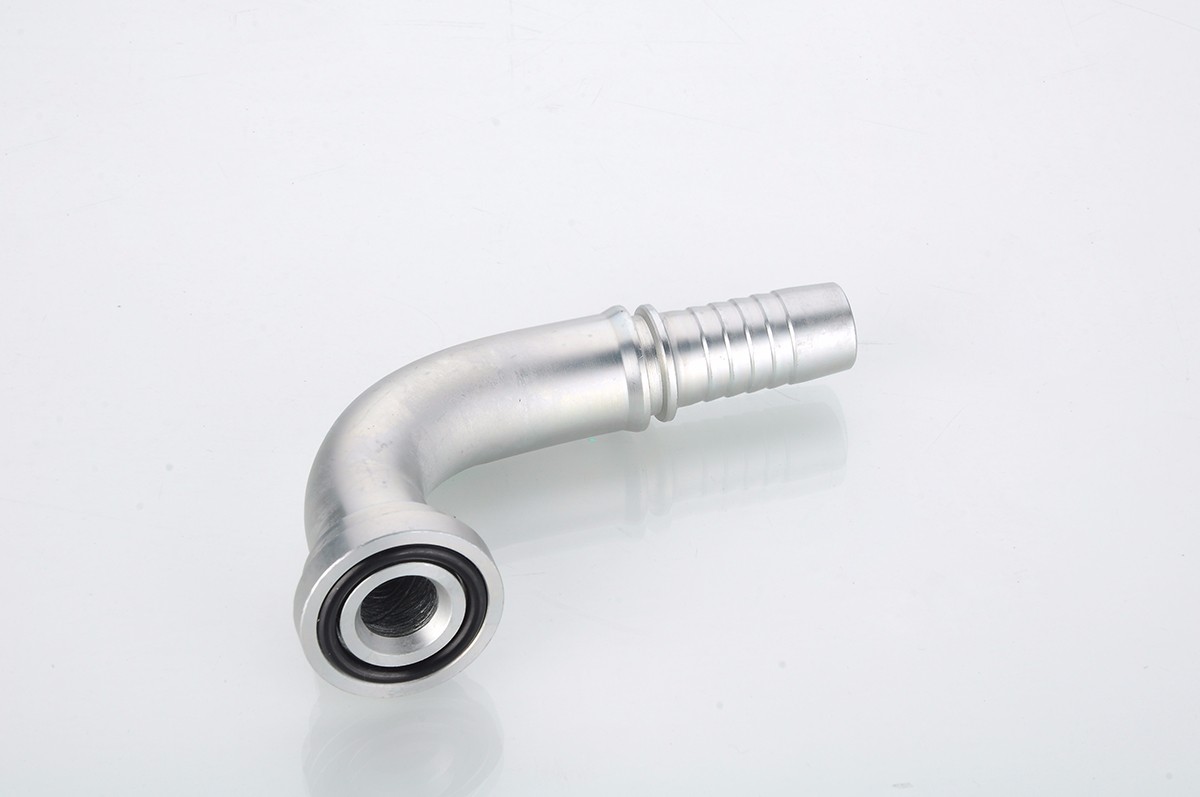

90° SAE 法兰 6000PSI
90° SAE FLANGE 6000 PSI
ISO 12151-3、SAE J516
产品中心PRODUCTS CENTER
扣压式软管接头
LOADING IMAGES
| 代号 | 法兰型号 | 软管 HOSE BORE | O 形圈 | 尺寸 DIMENSIONS | |||||
| PART NO. | FLANGE SIZE | 公称内径 DN | 标号 DASH | O-RING | A | C | D | H | L |
| 87691-08-08 | 1/2“ | 12 | 08 | O210 | 41 | 31.7 | 24 | 48 | 7.75 |
| 87691-12-10 | 3/4“ | 16 | 10 | O214 | 54.7 | 41.3 | 32 | 56.5 | 8.76 |
| 87691-12-12 | 3/4” | 20 | 12 | O214 | 66.2 | 41.3 | 32 | 66 | 8.76 |
| 87691-16-12 | 1“ | 20 | 12 | O219 | 65.5 | 47.6 | 38 | 69 | 9.53 |
| 87691-16-16 | 1“ | 25 | 16 | O219 | 79 | 47.6 | 38 | 74.5 | 9.53 |
| 87691-20-16 | 1.1/4" | 25 | 16 | O222 | 78 | 54 | 44 | 78.5 | 10.29 |
| 87691-20-20 | 1.1/4" | 32 | 20 | O222 | 91.5 | 54 | 44 | 89.5 | 10.29 |
| 87691-24-20 | 1.1/2" | 32 | 20 | O225 | 91.5 | 63.5 | 51 | 94.5 | 12.57 |
| 87691-24-24 | 1.1/2" | 40 | 24 | O225 | 109.4 | 63.5 | 51 | 108 | 12.57 |
| 87691-32-24 | 2" | 40 | 24 | O228 | 109.4 | 79.4 | 67 | 116 | 12.57 |
| 87691-32-32 | 2" | 50 | 32 | O228 | 131.8 | 79.4 | 67 | 136.3 | 12.57 |
