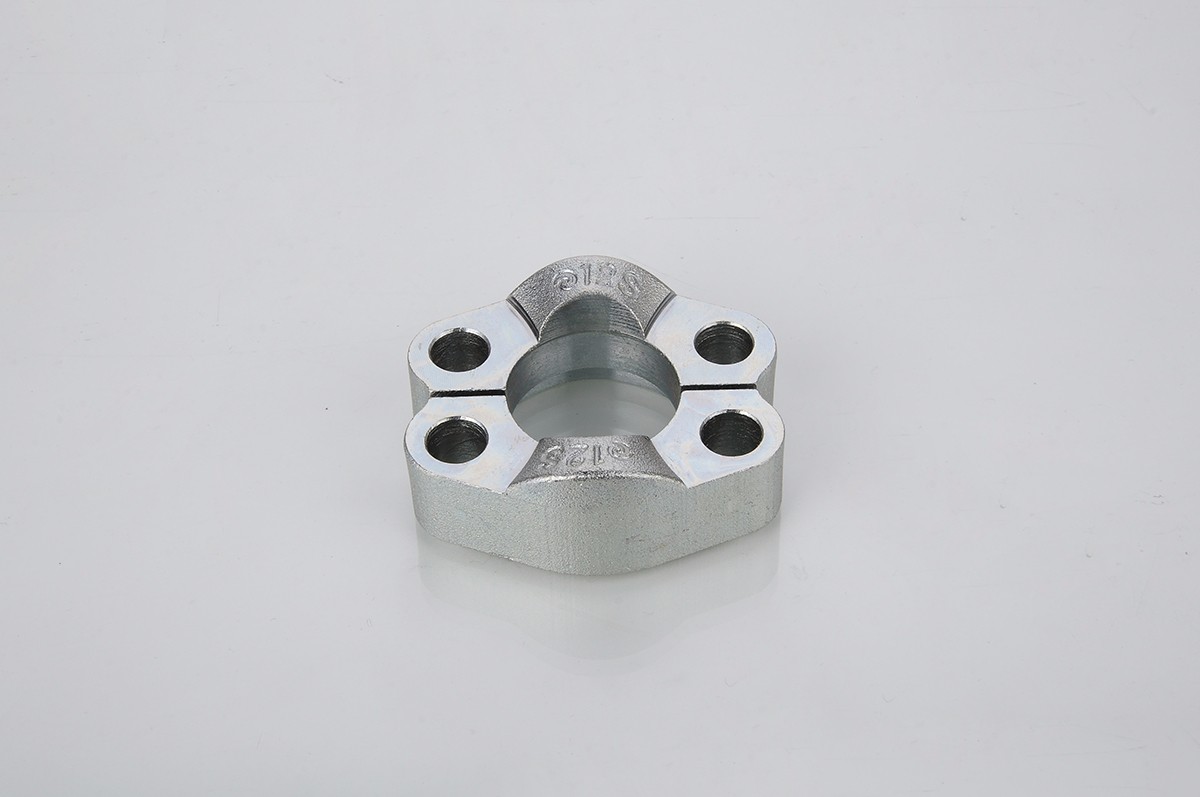

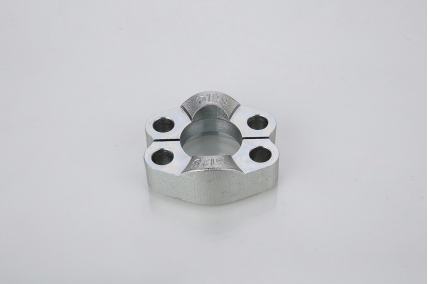

SAE 对开法兰夹 6000PSI
SAE SPLIT FLANGE CLAMPS 6000 PSI
ISO 6162、SAE J518
产品中心PRODUCTS CENTER
扣压式软管接头
LOADING IMAGES
| 代号 | 法兰型号 | 尺寸 DIMENSIONS | 螺栓 | 压力等级 | ||||
| PART NO. | FLANGE SIZE | A | B | C | D | E | BOLT | MPA |
| FS-08 | 1/2“ | 56 | 49.2 | 40.5 | 9 | 18.2 | M8X30 | 42 |
| FS-12 | 3/4“ | 71 | 61.8 | 50.8 | 11 | 23.8 | M10X35 | |
| FS-16 | 1” | 81 | 71.4 | 57.2 | 13 | 27.8 | M12X45 | |
| FS-20 | 1.1/4" | 95 | 79.2 | 66.7 | 15 | 31.8 | M14X50 | |
| FS-24 | 1.1/2" | 113 | 96.8 | 79.4 | 17 | 36.6 | M16X55 | |
| FS-32 | 2" | 133 | 116 | 96.8 | 21 | 44.4 | M20X70 | |
