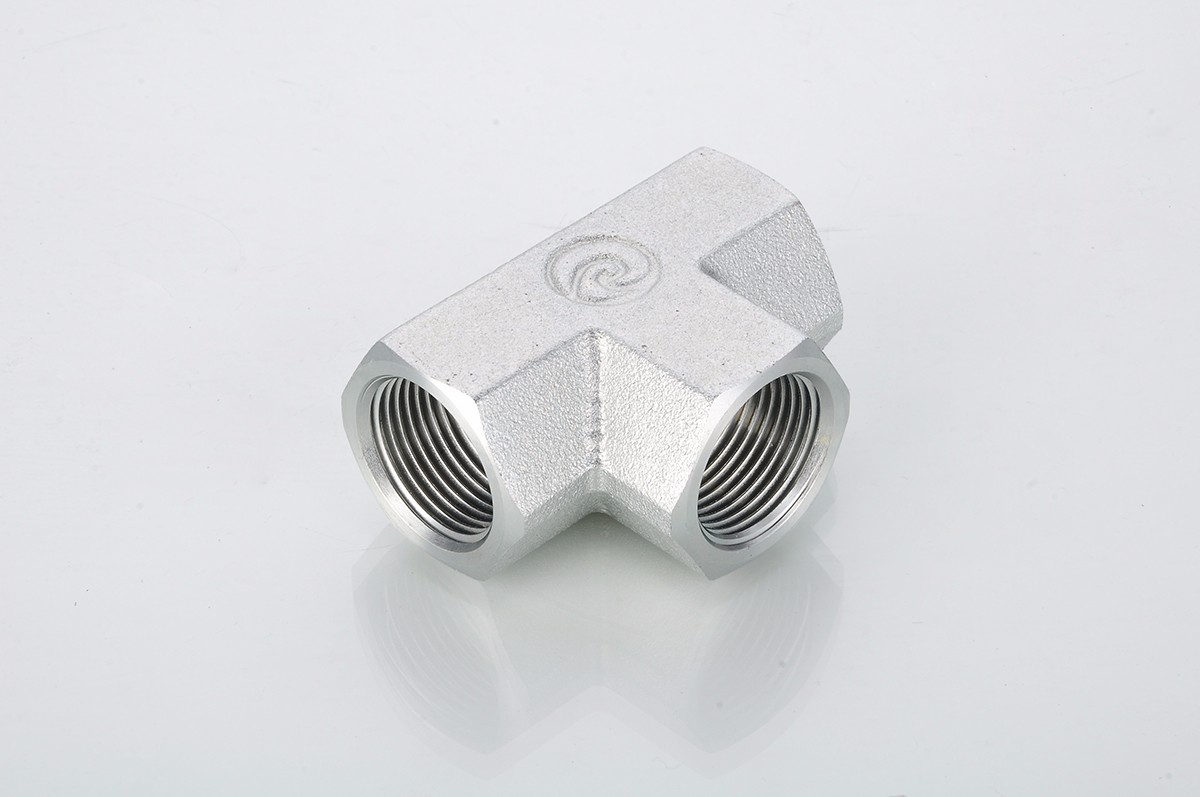

英锥管内螺纹三通
BSPT FEMALE TEE
上一篇: 7T9
下一篇: 暂无
产品中心PRODUCTS CENTER
过渡接头英制螺纹
| 代号 | 螺 纹 THREAD | 尺 寸 DIMENSIONS | |||||
| PART NO. | E | F | G | A | B | C | S1 |
| GT-02 | Rc1/8"X28 | Rc1/8"X28 | Rc1/8"X28 | 16 | 16 | 16 | 14 |
| GT-04 | Rc1/4"X19 | Rc1/4"X19 | Rc1/4"X19 | 20.5 | 20.5 | 20.5 | 17 |
| GT-06 | Rc3/8"X19 | Rc3/8"X19 | Rc3/8"X19 | 23.5 | 23.5 | 23.5 | 22 |
| GT-08 | Rc1/2"X14 | Rc1/2"X14 | Rc1/2"X14 | 29 | 29 | 29 | 27 |
| GT-12 | Rc3/4"X14 | Rc3/4"X14 | Rc3/4"X14 | 33 | 33 | 33 | 33 |
| GT-16 | Rc1"X11 | Rc1"X11 | Rc1"X11 | 40 | 40 | 40 | 41 |
| GT-20 | Rc1.1/4"X11 | Rc1.1/4"X11 | Rc1.1/4"X11 | 49 | 49 | 49 | 50 |
| GT-24 | Rc1.1/2"X11 | Rc1.1/2"X11 | Rc1.1/2"X11 | 48.5 | 48.5 | 48.5 | 60 |
| GT-32 | Rc2"X11 | Rc2"X11 | Rc2"X11 | 61 | 61 | 61 | 68 |
