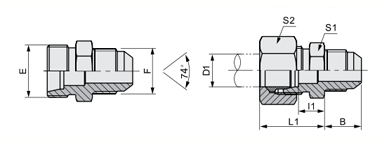

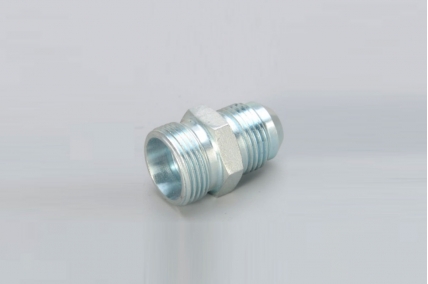

1CJ/1DJ 1CJ-RN/1DJ-RN
美制 JIC75° 锥密封 JIC75° CONE SEALING
产品中心PRODUCTS CENTER
卡套式硬管接头
| 代号 | 螺纹 THREAD | 管子外径 D1 | 尺寸 DIMENSIONS | 压力等级 | |||||
| PART NO. | E | F | TUBE O.D. | B | l1 | L1 | S1 | S2 | MPA |
| 1CJ-12-04 | M12X1.5 | 7/16X20 | 6 | 14 | 9 | 24 | 12 | 14 | 31.5轻系列L |
| 1CJ-14-04 | M14X1.5 | 7/16X20 | 8 | 14 | 9 | 24 | 14 | 17 | |
| 1CJ-14-06 | M14X1.5 | 9/16X18 | 8 | 14.5 | 9.5 | 24.5 | 17 | 17 | |
| 1CJ-16-06 | M16X1.5 | 9/16X18 | 10 | 14.5 | 10.5 | 25.5 | 17 | 19 | |
| 1CJ-18-06 | M18X1.5 | 9/16X18 | 12 | 14.5 | 11 | 26 | 19 | 22 | |
| 1CJ-18-08 | M18X1.5 | 3/4X16 | 12 | 17 | 12 | 27 | 22 | 22 | |
| 1CJ-22-08 | M22X1.5 | 3/4×16 | 15 | 17 | 11 | 26 | 22 | 27 | |
| 1CJ-22-10 | M22X1.5 | 7/8x14 | 15 | 20 | 13 | 28 | 22 | 27 | |
| 1CJ-26-10 | M26X1.5 | 7/8x14 | 18 | 20 | 11.5 | 28 | 27 | 32 | |
| 1CJ-26-12 | M26X1.5 | 1.1/16×12 | 18 | 22 | 11.5 | 28 | 27 | 32 | |
| 1CJ-30-12 | M30X2 | 1.1/16×12 | 22 | 22 | 15.5 | 32 | 30 | 36 | 16轻系列L |
| 1CJ-36-16 | M36X2 | 1.5/16x12 | 28 | 24 | 16.5 | 33 | 36 | 41 | |
| 1CJ-45-20 | M45X2 | 1.5/8×12 | 35 | 25 | 14.5 | 36 | 46 | 50 | |
| 1CJ-52-20 | M52X2 | 1.5/8×12 | 42 | 25 | 19 | 42 | 55 | 60 | |
| 1CJ-52-24 | M52X2 | 1.7/8X12 | 42 | 28 | 19 | 42 | 55 | 60 | |
| 1DJ-14-04 | M14X1.5 | 7/16X20 | 6 | 14 | 11 | 26 | 14 | 14 | 63重系列S |
| 1DJ-16-04 | M16X1.5 | 7/16X20 | 8 | 14 | 13 | 28 | 17 | 17 | |
| 1DJ-16-06 | M16X1.5 | 9/16X18 | 8 | 14.5 | 13 | 28 | 17 | 17 | |
| 1DJ-18-04 | M18X1.5 | 7/16X20 | 10 | 14 | 12.5 | 29 | 19 | 22 | |
| 1DJ-18-06 | M18X1.5 | 9/16X18 | 10 | 14.5 | 12.5 | 29 | 19 | 22 | |
| 1DJ-20-06 | M20X1.5 | 9/16X18 | 12 | 14.5 | 14.5 | 31 | 22 | 24 | |
| 1DJ-20-08 | M20X1.5 | 3/4X16 | 12 | 17 | 14.5 | 31 | 22 | 24 | |
| 1DJ-22-08 | M22X1.5 | 3/4X16 | 14 | 17 | 16 | 34 | 22 | 27 | |
| 1DJ-24-08 | M24X1.5 | 3/4X16 | 16 | 17 | 15.5 | 34 | 24 | 30 | 40重系列S |
| 1DJ-24-10 | M24X1.5 | 7/8X14 | 16 | 20 | 15.5 | 34 | 30 | 30 | |
| 1DJ-30-12 | M30X2 | 1.1/16X12 | 20 | 22 | 17.5 | 39 | 36 | 36 | |
| 1DJ-36-12 | M36X2 | 1.1/16X12 | 25 | 22 | 18 | 42 | 36 | 46 | |
| 1DJ-36-16 | M36X2 | 1.5/16X12 | 25 | 24 | 18 | 43 | 46 | 46 | |
| 1DJ-42-20 | M42X2 | 1.5/8X12 | 30 | 24 | 21.5 | 48 | 46 | 50 | |
| 1DJ-52-24 | M52X2 | 1.7/8X12 | 38 | 25 | 23 | 54 | 55 | 60 | 31.5重系列S |
