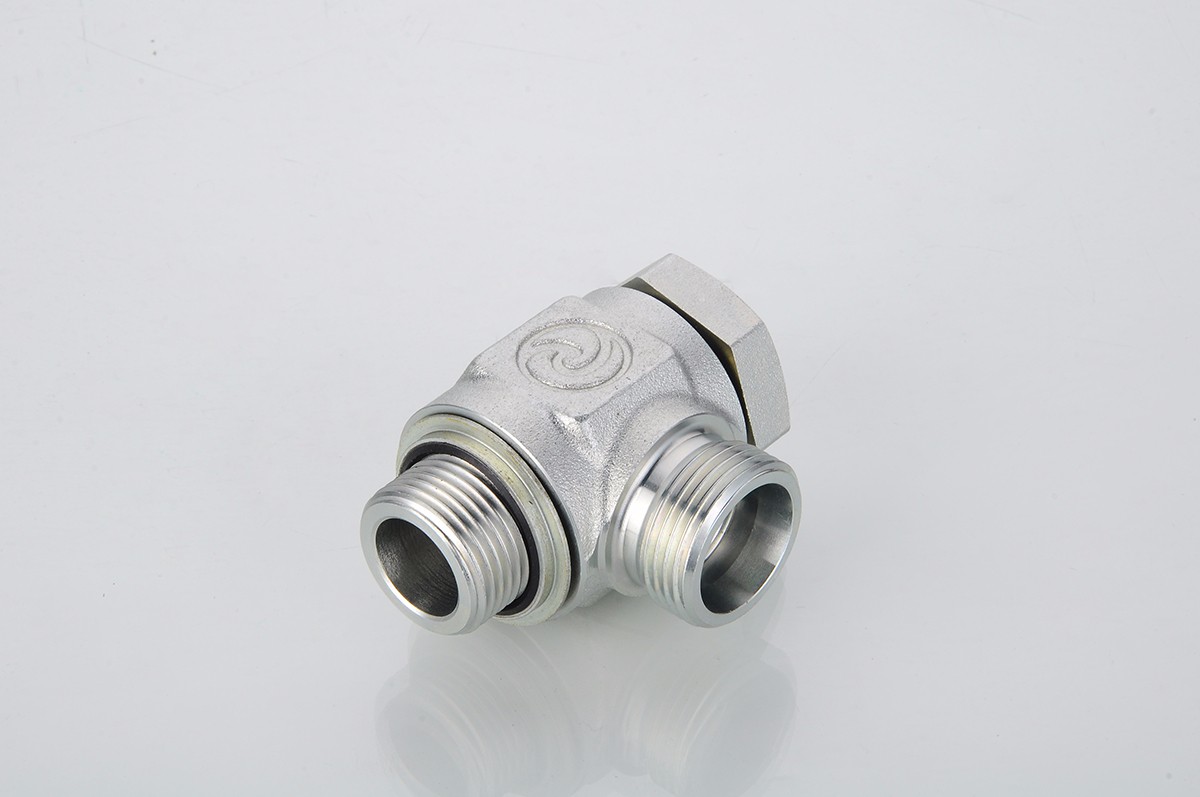

1CI/1DI 1CI-RN/1DI-RN
公制铰接接头
METRIC BANJO
上一篇: 5CT
下一篇: 暂无
产品中心PRODUCTS CENTER
卡套式硬管接头
| 代号 | 螺纹 THREAD | 管子外径 TUBE O.D. | 配用螺栓 BOLT | 尺寸 DIMENSIONS | 压力等级 | ||||||
| PART NO. | E | F | D1 | i | L | l1 | H | S1 | S2 | Mpa | |
| 1CI-12-10 | M12X1.5 | M10"X1 | 6 | 700M-10 | 7 | 26 | 11 | 26 | 17 | 14 | 31.5轻系列L |
| 1CI-14-12 | M14X1.5 | M12"X1.5 | 8 | 700M-12 | 10 | 28 | 13 | 30 | 17 | 17 | |
| 1CI-16-14 | M16X1.5 | M14"X1.5 | 10 | 700M-14 | 9 | 30 | 15 | 34 | 19 | 19 | |
| 1CI-18-16 | M18X1.5 | M16"X1.5 | 12 | 700M-16 | 10 | 32 | 17 | 38 | 22 | 22 | |
| 1CI-22 | M22X1.5 | M22"X1.5 | 15 | 700M-22 | 14 | 37 | 22 | 47 | 30 | 27 | |
| 1CI-22-18 | M22X1.5 | M18"X1.5 | 15 | 700M-18 | 10.5 | 34.5 | 19.5 | 41.5 | 27 | 27 | |
| 1CI-26-22 | M26X1.5 | M22"X1.5 | 18 | 700M-22 | 14 | 38 | 21.5 | 47 | 30 | 32 | |
| 1CI-26-27 | M26X1.5 | M27"X2 | 18 | 700M-27 | 15 | 44 | 27.5 | 57 | 36 | 32 | |
| 1CI-30-26 | M30X2 | M26"X1.5 | 22 | 700M-26 | 15 | 44.5 | 28 | 57 | 36 | 36 | |
| 1DI-14-12 | M14X1.5 | M12"X1.5 | 6 | 700M-12 | 10 | 30 | 15 | 30 | 17 | 17 | 63重系列S |
| 1DI-16-14 | M16X1.5 | M14"X1.5 | 8 | 700M-14 | 9 | 33 | 16 | 34 | 19 | 19 | |
| 1DI-18-16 | M18X1.5 | M16"X1.5 | 10 | 700M-16 | 10 | 34 | 17.5 | 38 | 22 | 22 | |
| 1DI-20-18 | M20X1.5 | M18"X1.5 | 12 | 700M-18 | 10.5 | 35.5 | 19 | 41.5 | 27 | 24 | |
| 1DI-22-18 | M22X1.5 | M18"X1.5 | 14 | 700M-18 | 10.5 | 39 | 20.5 | 41.5 | 27 | 27 | |
| 1DI-24-22 | M24X1.5 | M22"X1.5 | 16 | 700M-22 | 14 | 41 | 22.5 | 47 | 30 | 30 | |
| 1DI-30-26 | M30X2 | M26"X1.5 | 20 | 700M-26 | 15 | 48.5 | 27 | 57 | 36 | 36 | |
