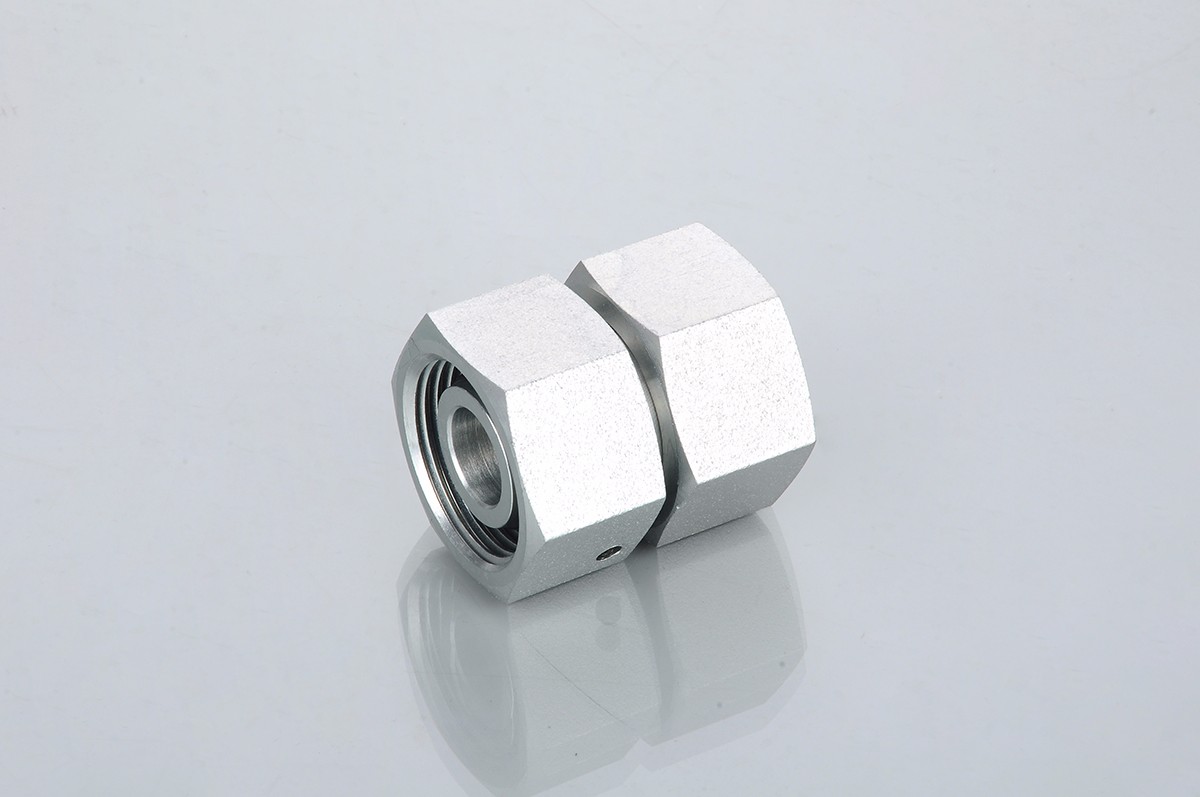

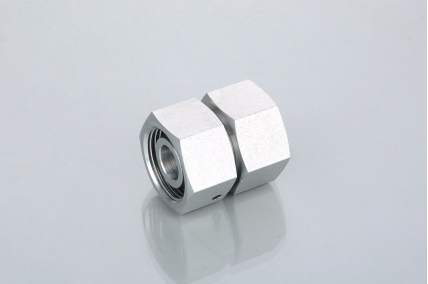

3C-W/3D-W
内螺纹直通接头
STRAIGHT TUBE ADAPTERS WITH SWIVEL NUT
产品中心PRODUCTS CENTER
卡套式硬管接头
| 代号 | 螺纹 THREAD | 管子外径 TUBE O.D. | O形圈 | 尺寸 DIMENSIONS | 压力等级 | |||||
| PART NO. | E | F | D1 | D2 | E端 | F端 | L1 | S1 | S2 | Mpa |
| 3C-12W | M12X1.5 | M12X1.5 | 6 | 6 | O04.5X1.5 | O04.5X1.5 | 32 | 14 | 14 | 31.5轻系列L |
| 3C-14W | M14X1.5 | M14X1.5 | 8 | 8 | O06.5X1.5 | O06.5X1.5 | 32 | 17 | 17 | |
| 3C-16W | M16X1.5 | M16X1.5 | 10 | 10 | O08.0X1.5 | O08.0X1.5 | 33 | 19 | 19 | |
| 3C-18W | M18X1.5 | M18X1.5 | 12 | 12 | O10.0X1.5 | O10.0X1.5 | 33 | 22 | 22 | |
| 3C-22W | M22X1.5 | M22X1.5 | 15 | 15 | O12.0X2.0 | O12.0X2.0 | 38 | 27 | 27 | |
| 3C-26W | M26X1.5 | M26X1.5 | 18 | 18 | O15.0X2.0 | O15.0X2.0 | 36 | 32 | 32 | |
| 3C-30W | M30X2 | M30X2 | 22 | 22 | O20.0X2.0 | O20.0X2.0 | 42 | 36 | 36 | 16轻系列L |
| 3C-36W | M36X2 | M36X2 | 28 | 28 | O26.0X2.0 | O26.0X2.0 | 46 | 41 | 41 | |
| 3C-45W | M45X2 | M45X2 | 35 | 35 | O32.0X2.5 | O32.0X2.5 | 48 | 50 | 50 | |
| 3C-52W | M52X2 | M52X2 | 42 | 42 | O38.0X2.5 | O38.0X2.5 | 52 | 60 | 60 | |
| 3D-14W | M14X1.5 | M14X1.5 | 6 | 6 | O04.5X1.5 | O04.5X1.5 | 32 | 17 | 17 | 63重系列S |
| 3D-16W | M16X1.5 | M16X1.5 | 8 | 8 | O06.5X1.5 | O06.5X1.5 | 33 | 19 | 19 | |
| 3D-18W | M18X1.5 | M18X1.5 | 10 | 10 | O08.0X1.5 | O08.0X1.5 | 33 | 22 | 22 | |
| 3D-20W | M20X1.5 | M20X1.5 | 12 | 12 | O10.0X1.5 | O10.0X1.5 | 36 | 24 | 24 | |
| 3D-22W | M22X1.5 | M22X1.5 | 14 | 14 | O11.0X2.0 | O11.0X2.0 | 39 | 27 | 27 | |
| 3D-24W | M24X1.5 | M24X1.5 | 16 | 16 | O13.0X2.0 | O13.0X2.0 | 39 | 30 | 30 | 40重系列S |
| 3D-30W | M30X2 | M30X2 | 20 | 20 | O16.3X2.4 | O16.3X2.4 | 44 | 36 | 36 | |
| 3D-36W | M36X2 | M36X2 | 25 | 25 | O20.3X2.4 | O20.3X2.4 | 46 | 46 | 46 | |
| 3D-42W | M42X2 | M42X2 | 30 | 30 | O25.3X2.4 | O25.3X2.4 | 52 | 50 | 50 | |
| 3D-52W | M52X2 | M52X2 | 38 | 38 | O33.3X2.4 | O33.3X2.4 | 52 | 60 | 60 | 31.5重系列S |
