9C/9D
内螺纹堵头

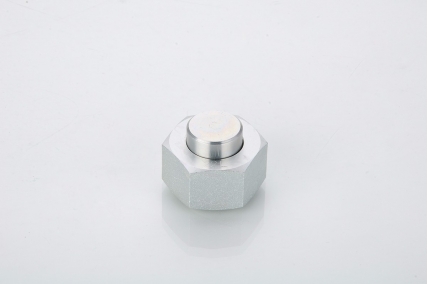

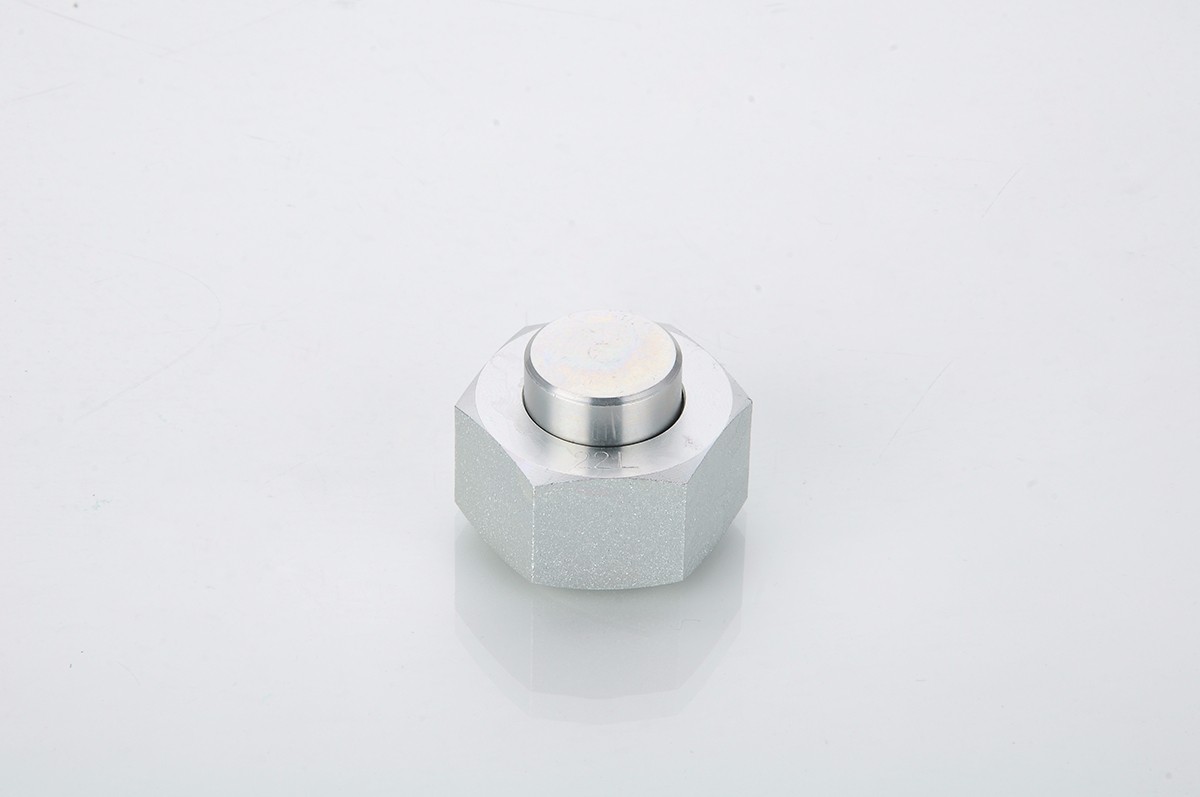

FEMALE PLUG
产品中心PRODUCTS CENTER
卡套式硬管接头
| 代号 | 螺纹 THREAD | 管子外径 D1 | 尺寸 DIMENSIONS | 压力等级 | ||
| PART NO. | E | TUBE O.D. | C | L | S2 | Mpa |
| 9C-12 | M12X1.5 | 6 | 1 | 15.5 | 14 | 31.5轻系列L |
| 9C-14 | M14X1.5 | 8 | 2 | 15.5 | 17 | |
| 9C-16 | M16X1.5 | 10 | 2 | 16.5 | 19 | |
| 9C-18 | M18X1.5 | 12 | 2.5 | 18 | 22 | |
| 9C-22 | M22X1.5 | 15 | 2.5 | 19.5 | 27 | |
| 9C-26 | M26X1.5 | 18 | 2.5 | 20 | 32 | |
| 9C-30 | M30X2 | 22 | 4 | 21.5 | 36 | 16轻系列L |
| 9C-36 | M36X2 | 28 | 4 | 22.5 | 41 | |
| 9C-45 | M45X2 | 35 | 5 | 25 | 50 | |
| 9C-52 | M52X2 | 42 | 5.5 | 27 | 60 | |
| 9D-14 | M14X1.5 | 6 | 1.1 | 16 | 17 | 63重系列S |
| 9D-16 | M16X1.5 | 8 | 1.5 | 16.5 | 19 | |
| 9D-18 | M18X1.5 | 10 | 2 | 18 | 22 | |
| 9D-20 | M20X1.5 | 12 | 2.5 | 18.5 | 24 | |
| 9D-22 | M22X1.5 | 14 | 2.5 | 19 | 27 | |
| 9D-24 | M24X1.5 | 16 | 3 | 18.5 | 30 | 40重系列S |
| 9D-30 | M30X2 | 20 | 3 | 22.5 | 36 | |
| 9D-36 | M36X2 | 25 | 3 | 28 | 46 | |
| 9D-42 | M42X2 | 30 | 5 | 30 | 50 | |
| 9D-52 | M52X2 | 38 | 6.5 | 26.5 | 60 | 31.5重系列S |
