00210-A
SAE 100R2AT/DIN20022 2SN 软管不剥胶套筒

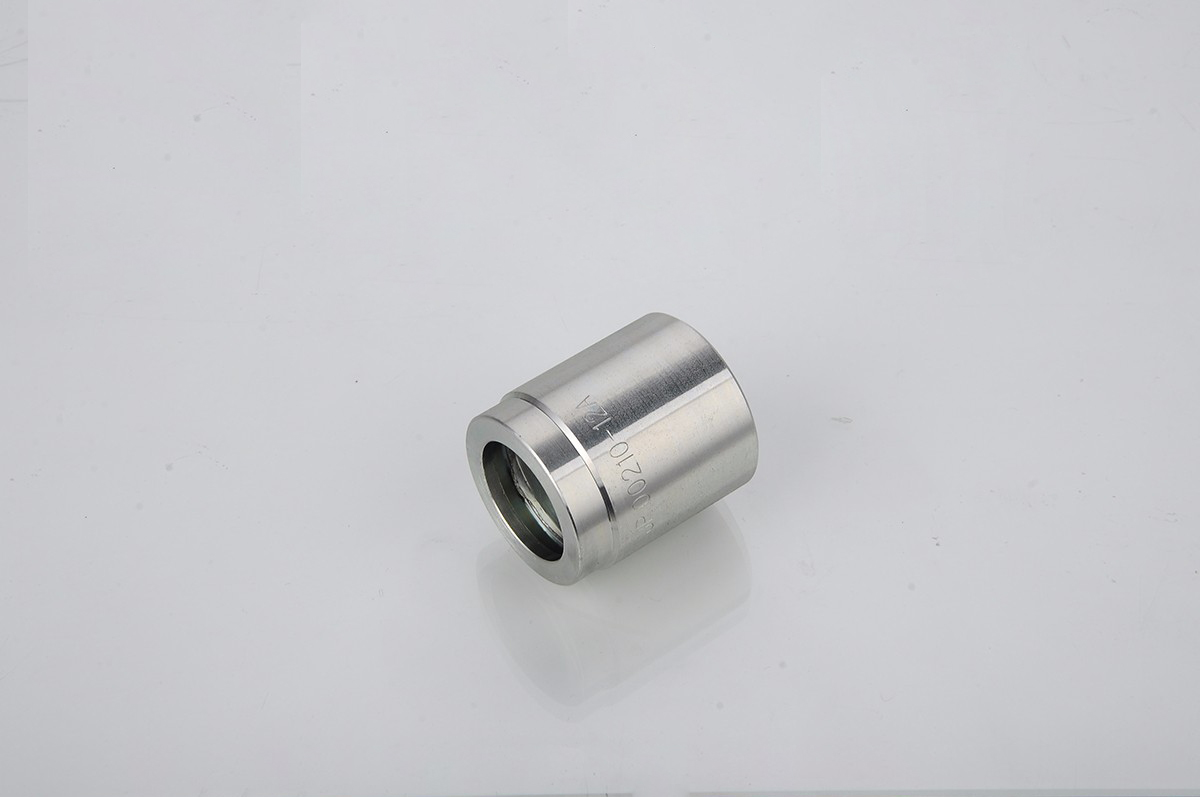

NO-SKIVE FERRULE FOR SAE 100R2AT/DIN20022 2SN HOSE
产品中心PRODUCTS CENTER
00210-A
SAE 100R2AT/DIN20022 2SN 软管不剥胶套筒
NO-SKIVE FERRULE FOR SAE 100R2AT/DIN20022 2SN HOSE
| 代号 PART NO. | 软管 HOSE BORE | 尺寸 DIMENSIONS | |||||
| 公称内径 DN | 标号 DASH | L | |||||
| 00210-04A | 6 | 04 | 30.5 | ||||
| 00210-05A | 8 | 05 | 30 | ||||
| 00210-06A | 10 | 06 | 32 | ||||
| 00210-08A | 12 | 08 | 34 | ||||
| 00210-10A | 16 | 10 | 37 | ||||
| 00210-12A | 20 | 12 | 42 | ||||
| 00210-16A | 25 | 16 | 51 | ||||
| 00210-20A | 32 | 20 | 59 | ||||
| 00210-24A | 40 | 24 | 67 | ||||
| 00210-32A | 50 | 32 | 72 | ||||
